48V System160A MPPT
48V Hybrid Solar System

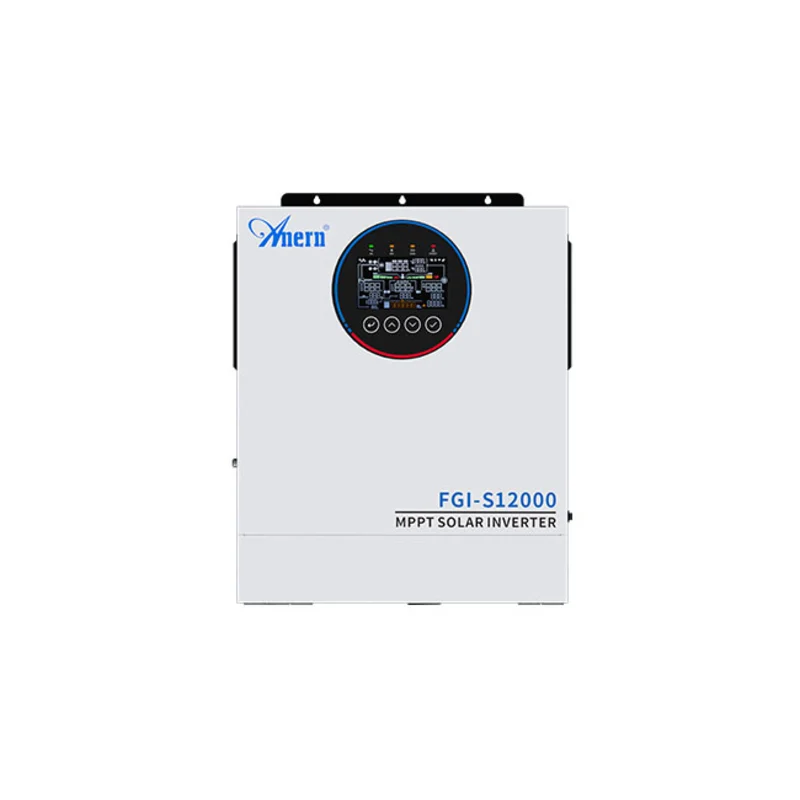

Anern AN-FGI-S12000
A 12kW 48V unit for a large home or small commercial space — simultaneously powers 2× split-type aircon units, multiple fridges, washing machine, and full lighting. Dual PV input absorbs up to 15,000W of solar panels at 500V Voc, with a 160A max charge current from PV and AC combined.
Power
12.0 kW
Battery
48 V
Charge
160 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the Anern 12.0kW series.
Solar & PV Input
- Max Array
- 15,000 W
- Max Voltage
- 500 V
- MPPT Range
- 60–450V
- MPPT Current
- 27 A
AC Output Specs
- Rated Output
- 12,000 W
- Voltage
- 220/230/240V
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lead-Acid / AGM
- Nominal V
- 48 V
- Max Charge
- 160 A
Build Quality
- Net Weight
- 18.0 kg
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the Anern 12.0kW — sized at its rated output.
Battery breaker
400A DC
Battery cable
350MCM
AC load breaker
80A AC
PV cable
10 AWG
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 12,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
3,688W
Safezone: you still have 8,312W headroom for surges (pumps, kettles, etc.)
LED bulb (22×)
198W
Electric fan (8×)
480W
LED/Smart TV (2×)
300W
Laptop charger (2×)
130W
Smartphone charger (6×)
60W
Refrigerator – i… (2×)
500W
Water dispenser
80W
Wi-Fi router (2×)
40W
Desktop PC with …
300W
Split-type airco… (2×)
1,600W
