24V System160A MPPT
24V Hybrid Solar System

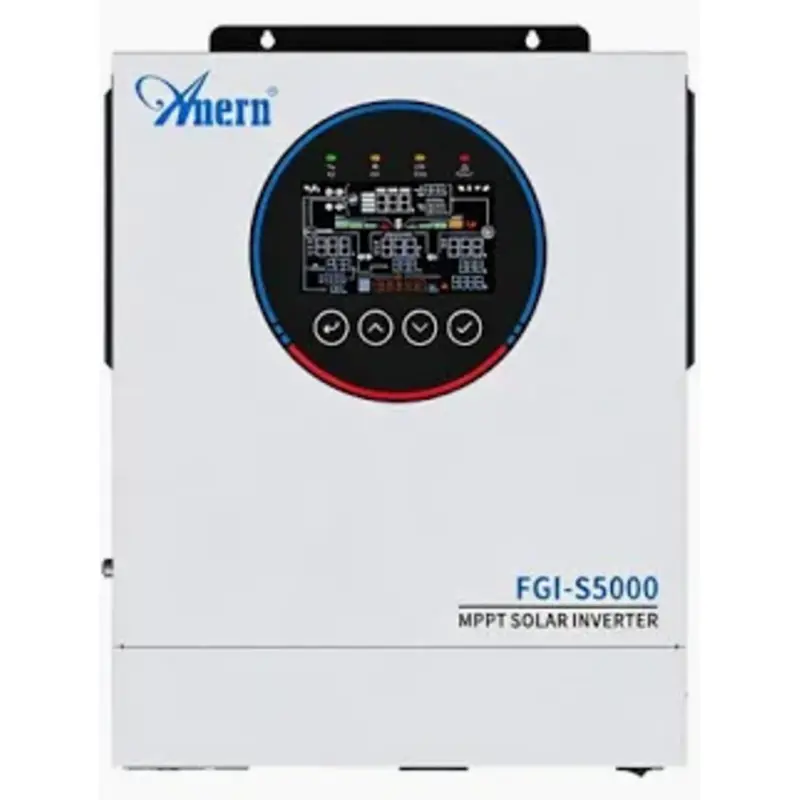

Anern AN-FGI-S5000
A 5kW 24V unit for a mid-sized Filipino home — powers lights, fans, TV, inverter fridge, washing machine, and a desktop PC at once. The MPPT solar charger absorbs up to 9,000W of solar panels at 500V Voc, with a 160A max charge current from PV and AC combined.
Power
5.0 kW
Battery
24 V
Charge
160 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the Anern 5.0kW series.
Solar & PV Input
- Max Array
- 9,000 W
- Max Voltage
- 500 V
- MPPT Range
- 60–450V
- MPPT Current
- 27 A
AC Output Specs
- Rated Output
- 5,000 W
- Voltage
- 208/220/230/240V
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lead-Acid / AGM
- Nominal V
- 24 V
- Max Charge
- 160 A
Build Quality
- Net Weight
- 9.0 kg
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the Anern 5.0kW — sized at its rated output.
Battery breaker
300A DC
Battery cable
350MCM
AC load breaker
32A AC
PV cable
10 AWG
Documentation & official link
Links below open the manufacturer's site or PDF manual. You will see a short notice before leaving Solar Panda.
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 5,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
1,263W
Safezone: you still have 3,737W headroom for surges (pumps, kettles, etc.)
LED bulb (12×)
108W
Electric fan (4×)
240W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
Desktop PC with …
300W
