48V System120A MPPT
48V Hybrid Solar System

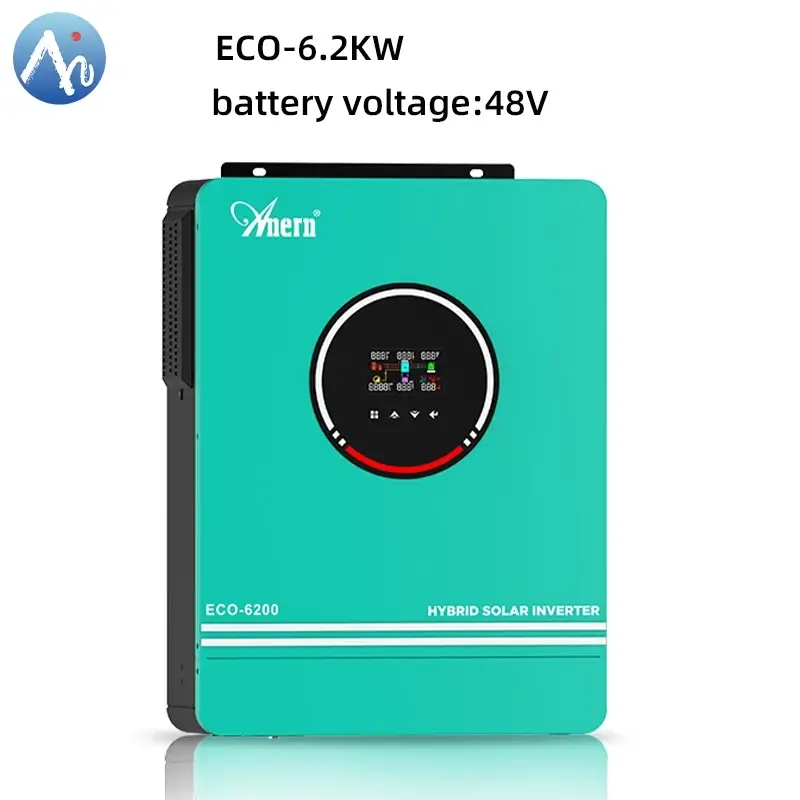

Anern ECO-6200W
A 6.5kW 48V unit for a large 3–4 bedroom Filipino home — simultaneously powers 2 × 1.5HP inverter aircon units, inverter fridge, washing machine, water pump, lights, and fans. The 120A MPPT matches output with 6,500W of PV capacity at 500V Voc for near-full daytime solar self-sufficiency.
Power
6.5 kW
Battery
48 V
Charge
120 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the Anern 6.5kW series.
Solar & PV Input
- Max Array
- 6,500 W
- Max Voltage
- 500 V
- MPPT Current
- 120 A
AC Output Specs
- Rated Output
- 6,500 W
- Voltage
- 220V ±5% (Adjustable)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lead-Acid / AGM
- Nominal V
- 48 V
- Max Charge
- 120 A
Build Quality
- Net Weight
- 11.2 kg
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the Anern 6.5kW — sized at its rated output.
Battery breaker
180A DC
Battery cable
2/0 AWG
AC load breaker
40A AC
PV cable
10 AWG
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 6,500W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
2,219W
Safezone: you still have 4,281W headroom for surges (pumps, kettles, etc.)
LED bulb (16×)
144W
Electric fan (6×)
360W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
Desktop PC with …
300W
Split-type airco…
800W
