24V System18A MPPT
24V Hybrid Solar System

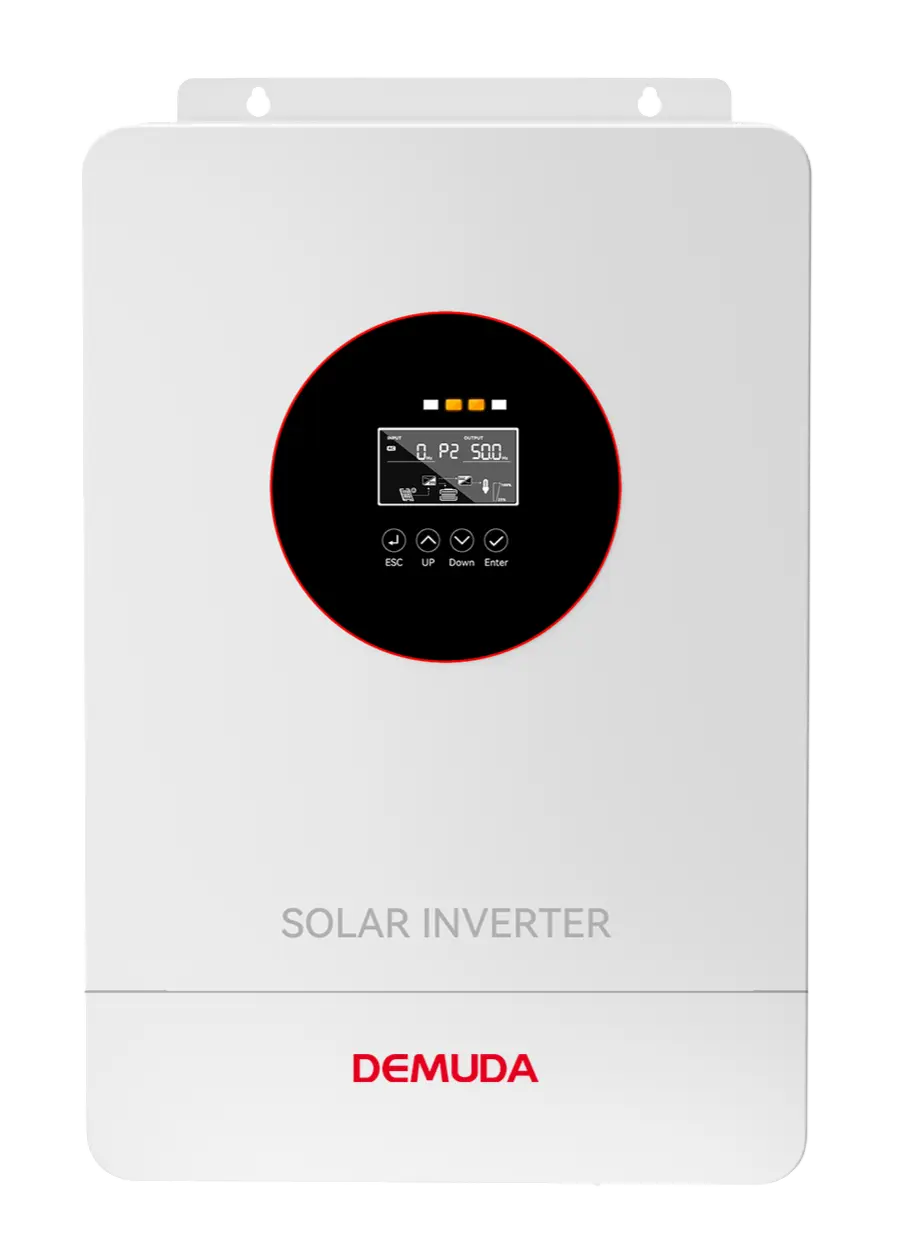

Demuda DFHY-3.6KW
A 3.6kW grid-hybrid unit suited for a 2–3 bedroom home with an active grid connection — offsets daytime electricity bills by routing up to 5,000W of solar panels at 500V Voc directly into the home. Battery charging relies heavily on the AC grid due to the low 18A MPPT charge current, so this is best as a grid-backup hybrid rather than a pure off-grid solution.
Power
3.6 kW
Battery
24 V
Charge
18 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the Demuda 3.6kW series.
Solar & PV Input
- Max Array
- 5,000 W
- Max Voltage
- 500 V
- MPPT Range
- 120–500V
- MPPT Current
- 18 A
AC Output Specs
- Rated Output
- 3,600 W
- Voltage
- 90–280V
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lithium / Lead-Acid
- Nominal V
- 24 V
- Max Charge
- 18 A
Build Quality
- Net Weight
- 6.25 kg
- Dimensions
- 290×440×100 mm
Wiring Specs
Breaker rating and wire gauge for every run on the Demuda 3.6kW — sized at its rated output.
Battery breaker
200A DC
Battery cable
2/0 AWG
AC load breaker
20A AC
PV cable
10 AWG
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 3,600W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
1,741W
Safezone: you still have 1,859W headroom for surges (pumps, kettles, etc.)
LED bulb (14×)
126W
Electric fan (5×)
300W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
Desktop PC with …
300W
Air cooler
400W
