48V System22A MPPT
48V Hybrid Solar System

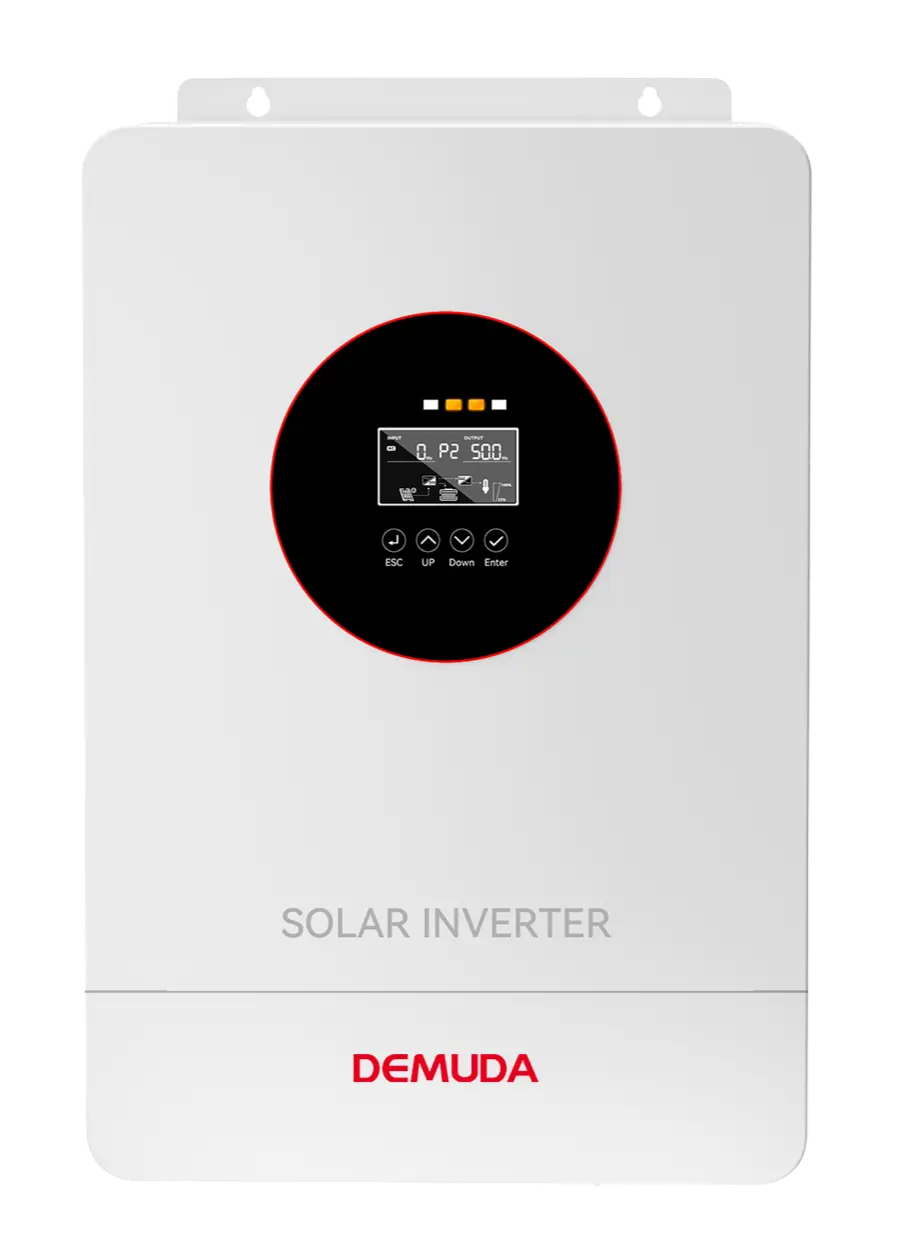

Demuda DFHY-6.2KW
A 6.2kW 48V grid-hybrid unit with parallel stacking — ideal for a large home with grid connection looking to offset multiple aircon units and a full appliance load with solar. The 22A battery charge current limits off-grid autonomy, making this best suited for grid-connected setups that want significant solar savings.
Power
6.2 kW
Battery
48 V
Charge
22 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the Demuda 6.2kW series.
Solar & PV Input
- Max Array
- 6,000 W
- Max Voltage
- 500 V
- MPPT Range
- 120–500V
- MPPT Current
- 22 A
AC Output Specs
- Rated Output
- 6,200 W
- Voltage
- 90–280V
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lithium / Lead-Acid
- Nominal V
- 48 V
- Max Charge
- 22 A
Build Quality
- Dimensions
- 365×550×130 mm
Wiring Specs
Breaker rating and wire gauge for every run on the Demuda 6.2kW — sized at its rated output.
Battery breaker
180A DC
Battery cable
1/0 AWG
AC load breaker
40A AC
PV cable
10 AWG
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 6,200W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
2,219W
Safezone: you still have 3,981W headroom for surges (pumps, kettles, etc.)
LED bulb (16×)
144W
Electric fan (6×)
360W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
Desktop PC with …
300W
Split-type airco…
800W
