48V System250A MPPT
48V Hybrid Solar System

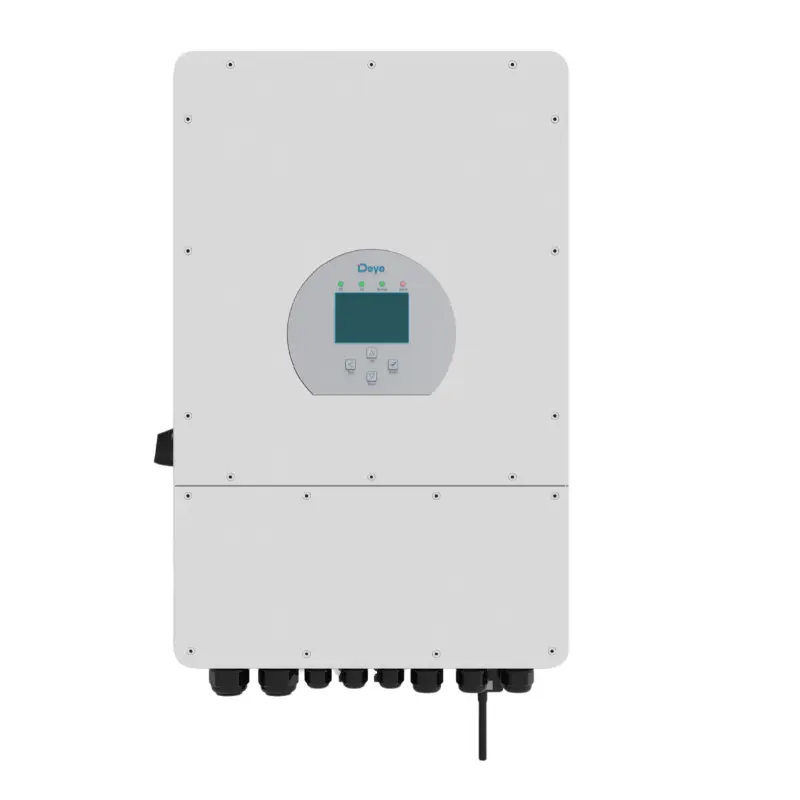

Deye SUN-12K-SG02LP1-EU-AM3
A flagship Deye 12kW parallel-stackable inverter for large commercial-scale installations — simultaneously powers 5+ aircon units plus a full commercial appliance load, with the 250A MPPT absorbing up to 15,600W of solar panels. Deye's mature ecosystem and firmware track record make this a trusted choice for installers scaling from residential to light commercial.
Power
12.0 kW
Battery
48 V
Charge
250 A
Shopee Price
₱85,000.00
Lazada Affiliate Link
₱85,000.00
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the Deye 12.0kW series.
Solar & PV Input
- Max Array
- 16,000 W
- Max Voltage
- 500 V
- MPPT Range
- 150–425V
- MPPT Current
- 26 A
AC Output Specs
- Rated Output
- 12,000 W
- Voltage
- 0.85Un–1.1Un (187–253V)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lead-Acid / Lithium
- Nominal V
- 48 V
- Max Charge
- 250 A
Build Quality
- Net Weight
- 35.6 kg
- Dimensions
- 670×420×233 mm
Wiring Specs
Breaker rating and wire gauge for every run on the Deye 12.0kW — sized at its rated output.
Battery breaker
400A DC
Battery cable
350MCM
AC load breaker
80A AC
PV cable
10 AWG
Documentation & official link
Links below open the manufacturer's site or PDF manual. You will see a short notice before leaving Solar Panda.
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 12,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
3,670W
Safezone: you still have 8,330W headroom for surges (pumps, kettles, etc.)
LED bulb (20×)
180W
Electric fan (8×)
480W
LED/Smart TV (2×)
300W
Laptop charger (2×)
130W
Smartphone charger (6×)
60W
Refrigerator – i… (2×)
500W
Water dispenser
80W
Wi-Fi router (2×)
40W
Desktop PC with …
300W
Split-type airco… (2×)
1,600W
