48V System380A MPPT
48V Hybrid Solar System

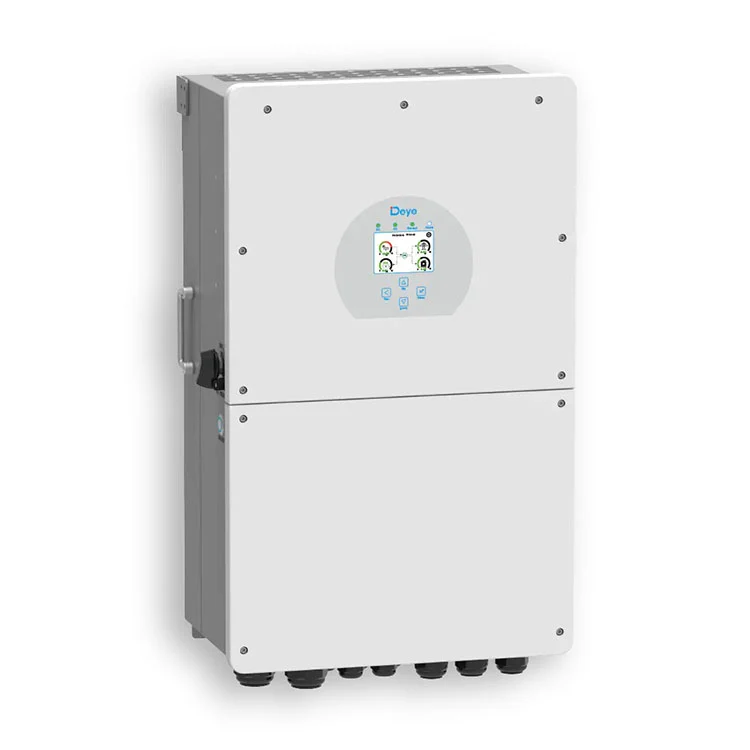

Deye SUN-18K-SG01LP1-EU-AM3-P
The largest single-phase hybrid inverter in the Solar Panda catalog — an 18kW 48V Deye built for commercial buildings and large estates, running 8+ aircon units alongside a full commercial appliance load. Its 380A of battery charging current is the highest we carry, letting a big bank refill fast on a short sunny window, and three MPP trackers spread up to 28,800W of panels across separate roof orientations. Stackable to 16 units in parallel for installations larger still.
Power
18.0 kW
Battery
48 V
Charge
380 A
Shopee Price
₱145,000.00
Lazada Price
₱145,000.00
Prices shown are estimated retail prices. No online store link available yet.
Technical Blueprint
Deep dive into the electrical capabilities of the Deye 18.0kW series.
Solar & PV Input
- Max Array
- 28,800 W
- Max Voltage
- 500 V
- MPPT Range
- 150–425V
- MPPT Current
- 36 A
AC Output Specs
- Rated Output
- 18,000 W
- Max Output Current
- 78.3 A
- Voltage
- 0.85Un–1.1Un (187–253V)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lead-Acid / Lithium
- Nominal V
- 48 V
- Max Charge
- 380 A
Build Quality
- Net Weight
- 59.8 kg
- Dimensions
- 863×464×282 mm
Wiring Specs
Breaker rating and wire gauge for every run on the Deye 18.0kW — sized at its rated output.
Battery breaker
400A DC
Battery cable
650MCM
AC load breaker
100A AC
PV cable
10 AWG
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 18,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
5,541W
Safezone: you still have 12,459W headroom for surges (pumps, kettles, etc.)
LED bulb (24×)
216W
Electric fan (10×)
600W
LED/Smart TV (3×)
450W
Laptop charger (3×)
195W
Smartphone charger (8×)
80W
Refrigerator – i… (2×)
500W
Chest freezer
300W
Water dispenser (2×)
160W
Wi-Fi router (2×)
40W
Desktop PC with … (2×)
600W
Split-type airco… (3×)
2,400W
