48V System135A MPPT
48V Hybrid Solar System

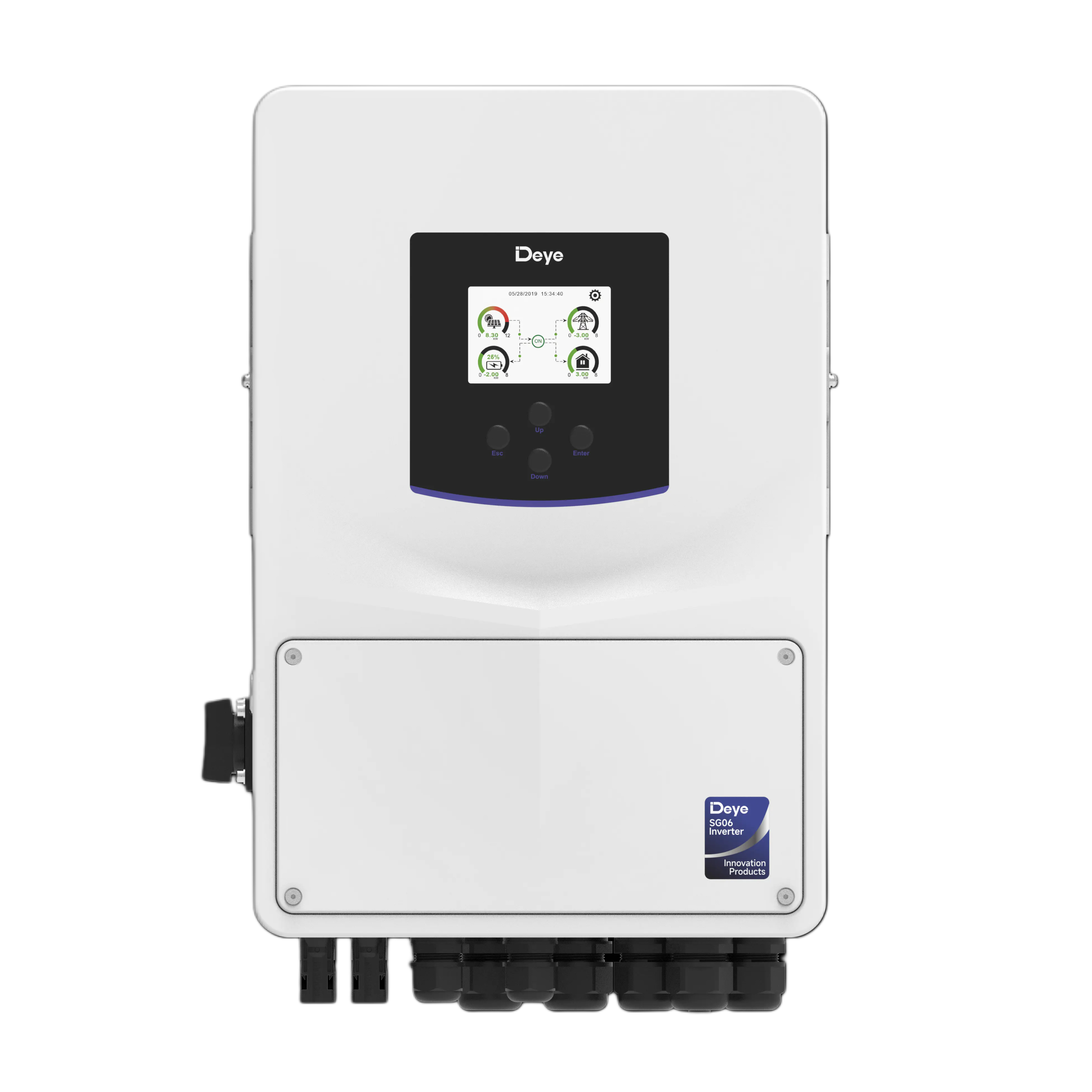

Deye SUN-6K-SG06LP1-EU-CM2
The latest SG06-generation Deye 6kW 48V hybrid inverter — the successor to the SG04 — with a faster CM-series control board and refined firmware. The 135A MPPT handles up to 9,600W of solar panels at 425V Voc, powering 2 × 1.5HP inverter aircon, inverter fridge, washing machine, and the full home load simultaneously. A noticeably more compact and lighter chassis (15.6 kg) than the SG04 while keeping Deye's mature monitoring ecosystem and long-term firmware support.
Power
6.0 kW
Battery
48 V
Charge
135 A
Technical Blueprint
Deep dive into the electrical capabilities of the Deye 6.0kW series.
Solar & PV Input
- Max Array
- 12,000 W
- Max Voltage
- 500 V
- MPPT Range
- 150–425V
- MPPT Current
- 18 A
AC Output Specs
- Rated Output
- 6,000 W
- Voltage
- 0.85Un–1.1Un (187–253V)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lithium-Ion / Lead-Acid
- Nominal V
- 48 V
- Max Charge
- 135 A
Build Quality
- Net Weight
- 15.6 kg
- Dimensions
- 460×310×218 mm
Wiring Specs
Breaker rating and wire gauge for every run on the Deye 6.0kW — sized at its rated output.
Battery breaker
180A DC
Battery cable
1/0 AWG
AC load breaker
40A AC
PV cable
10 AWG
Documentation & official link
Links below open the manufacturer's site or PDF manual. You will see a short notice before leaving Solar Panda.
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 6,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
2,219W
Safezone: you still have 3,781W headroom for surges (pumps, kettles, etc.)
LED bulb (16×)
144W
Electric fan (6×)
360W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
Desktop PC with …
300W
Split-type airco…
800W
