48V System210A MPPT
48V Hybrid Solar System

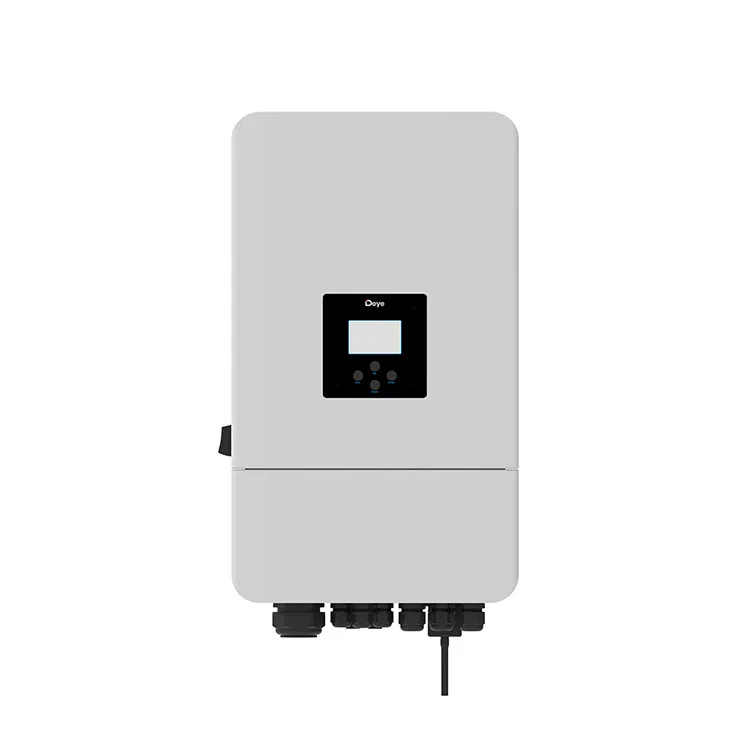

Deye SUN-8K-SG05LP1-EU-SM
A flagship Deye 8kW hybrid inverter with parallel stacking and an exceptional 210A MPPT absorbing up to 12,800W of solar panels — built for large Filipino homes or small businesses running 3–4 air conditioners plus a full appliance load. Deye's proven ecosystem and firmware track record make it one of the most dependable choices at this power level.
Power
8.0 kW
Battery
48 V
Charge
210 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the Deye 8.0kW series.
Solar & PV Input
- Max Array
- 16,000 W
- Max Voltage
- 500 V
- MPPT Range
- 150–425V
- MPPT Current
- 26 A
AC Output Specs
- Rated Output
- 8,000 W
- Voltage
- 0.85Un–1.1Un (187–253V)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lithium-Ion / Lead-Acid
- Nominal V
- 48 V
- Max Charge
- 210 A
Build Quality
- Net Weight
- 24.9 kg
- Dimensions
- 580×330×232 mm
Wiring Specs
Breaker rating and wire gauge for every run on the Deye 8.0kW — sized at its rated output.
Battery breaker
300A DC
Battery cable
350MCM
AC load breaker
50A AC
PV cable
10 AWG
Documentation & official link
Links below open the manufacturer's site or PDF manual. You will see a short notice before leaving Solar Panda.
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 8,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
2,219W
Safezone: you still have 5,781W headroom for surges (pumps, kettles, etc.)
LED bulb (16×)
144W
Electric fan (6×)
360W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
Desktop PC with …
300W
Split-type airco…
800W
