48V System185A MPPT
48V Hybrid Solar System

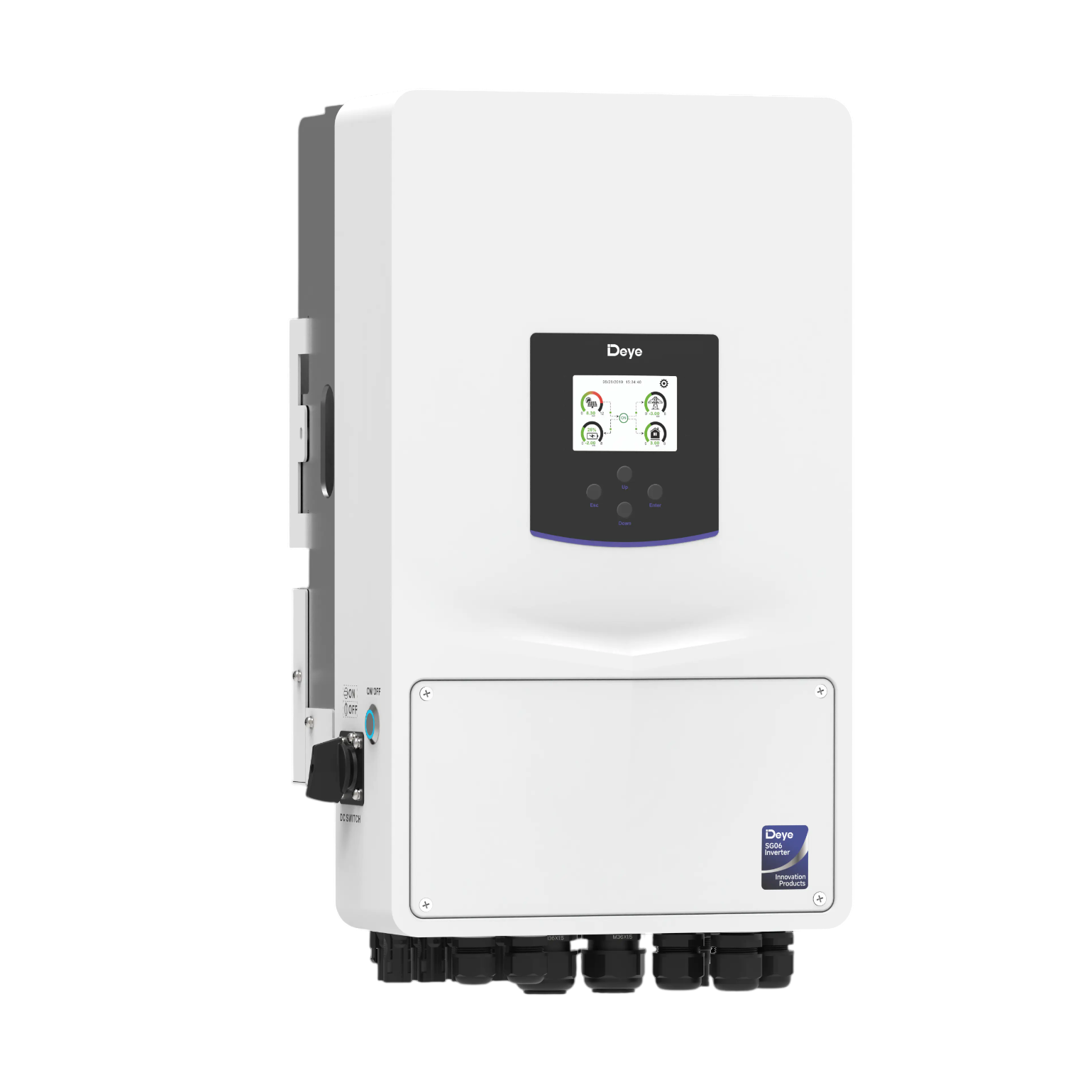

Deye SUN-8K-SG06LP1-EU-CM3
The latest SG06-generation Deye 8kW 48V hybrid inverter — the successor to the SG05 — upgraded from 2 to 3 MPPT trackers for far greater solar-array flexibility, letting you split up to 12,800W of panels across more roof orientations and independent strings. Built for large Filipino homes or small businesses running 3–4 air conditioners plus a full appliance load, it pairs Deye's proven monitoring ecosystem and long-term firmware support with the refined CM3-series control board.
Power
8.0 kW
Battery
48 V
Charge
185 A
Shopee Price
₱64,000.00
Lazada Price
₱64,000.00
Prices shown are estimated retail prices. No online store link available yet.
Technical Blueprint
Deep dive into the electrical capabilities of the Deye 8.0kW series.
Solar & PV Input
- Max Array
- 16,000 W
- Max Voltage
- 500 V
- MPPT Range
- 150–425V
- MPPT Current
- 36 A
AC Output Specs
- Rated Output
- 8,000 W
- Voltage
- 0.85Un–1.1Un (187–253V)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lithium-Ion / Lead-Acid
- Nominal V
- 48 V
- Max Charge
- 185 A
Build Quality
- Net Weight
- 24.9 kg
- Dimensions
- 580×340×234 mm
Wiring Specs
Breaker rating and wire gauge for every run on the Deye 8.0kW — sized at its rated output.
Battery breaker
250A DC
Battery cable
4/0 AWG
AC load breaker
50A AC
PV cable
10 AWG
Documentation & official link
Links below open the manufacturer's site or PDF manual. You will see a short notice before leaving Solar Panda.
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 8,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
2,219W
Safezone: you still have 5,781W headroom for surges (pumps, kettles, etc.)
LED bulb (16×)
144W
Electric fan (6×)
360W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
Desktop PC with …
300W
Split-type airco…
800W
