48V System150A MPPT
48V Hybrid Solar System

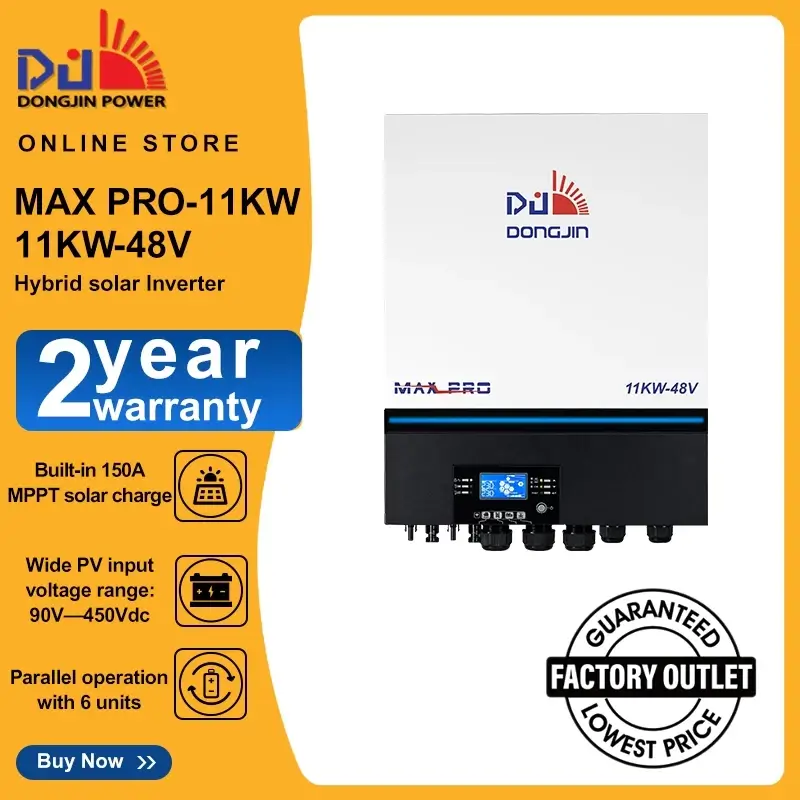

DongJin MAX-PRO-11KW
An 11kW 48V DongJin unit with parallel stacking for large homes and small commercial spaces — simultaneously powers 5 × 1HP aircon units alongside multiple large appliances. The 150A MPPT handles up to 11,000W of solar panels at 450V Voc.
Power
11.0 kW
Battery
48 V
Charge
150 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the DongJin 11.0kW series.
Solar & PV Input
- Max Array
- 11,000 W
- Max Voltage
- 500 V
- MPPT Range
- 60–500V
- MPPT Current
- 150 A
AC Output Specs
- Rated Output
- 11,000 W
- Voltage
- 220 V
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- LiFePO4 / Lead-Acid
- Nominal V
- 48 V
- Max Charge
- 150 A
Build Quality
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the DongJin 11.0kW — sized at its rated output.
Battery breaker
300A DC
Battery cable
350MCM
AC load breaker
63A AC
PV cable
10 AWG
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 11,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
3,670W
Safezone: you still have 7,330W headroom for surges (pumps, kettles, etc.)
LED bulb (20×)
180W
Electric fan (8×)
480W
LED/Smart TV (2×)
300W
Laptop charger (2×)
130W
Smartphone charger (6×)
60W
Refrigerator – i… (2×)
500W
Water dispenser
80W
Wi-Fi router (2×)
40W
Desktop PC with …
300W
Split-type airco… (2×)
1,600W
