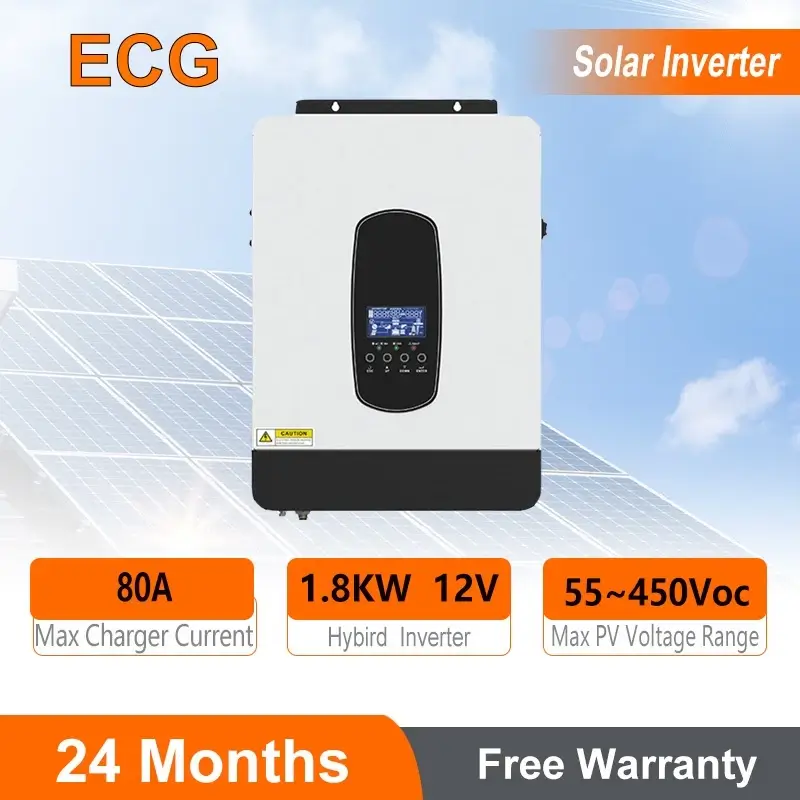

12V System80A MPPT
12V Hybrid Solar System
ECG 1.8kW
A high-power 1.8kW 12V unit for a small home or workshop on an existing 12V battery bank — simultaneously runs lights, fans, a TV, an inverter fridge, and a washing machine. The 80A MPPT accepts up to 2,000W of solar panels at 450V Voc, delivering far more daily solar harvest than typical 12V inverters.
Power
1.8 kW
Battery
12 V
Charge
80 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the ECG 1.8kW series.
Solar & PV Input
- Max Array
- 2,000 W
- Max Voltage
- 450 V
- MPPT Current
- 80 A
AC Output Specs
- Rated Output
- 1,800 W
- Voltage
- 220V ±5% (Adjustable)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- LiFePO4 / AGM
- Nominal V
- 12 V
- Max Charge
- 60 A
Build Quality
- Net Weight
- 5.0 kg
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the ECG 1.8kW — sized at its rated output.
Battery breaker
200A DC
Battery cable
2/0 AWG
AC load breaker
10A AC
PV cable
10 AWG
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 1,800W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
885W
Safezone: you still have 915W headroom for surges (pumps, kettles, etc.)
LED bulb (10×)
90W
Electric fan (3×)
180W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
