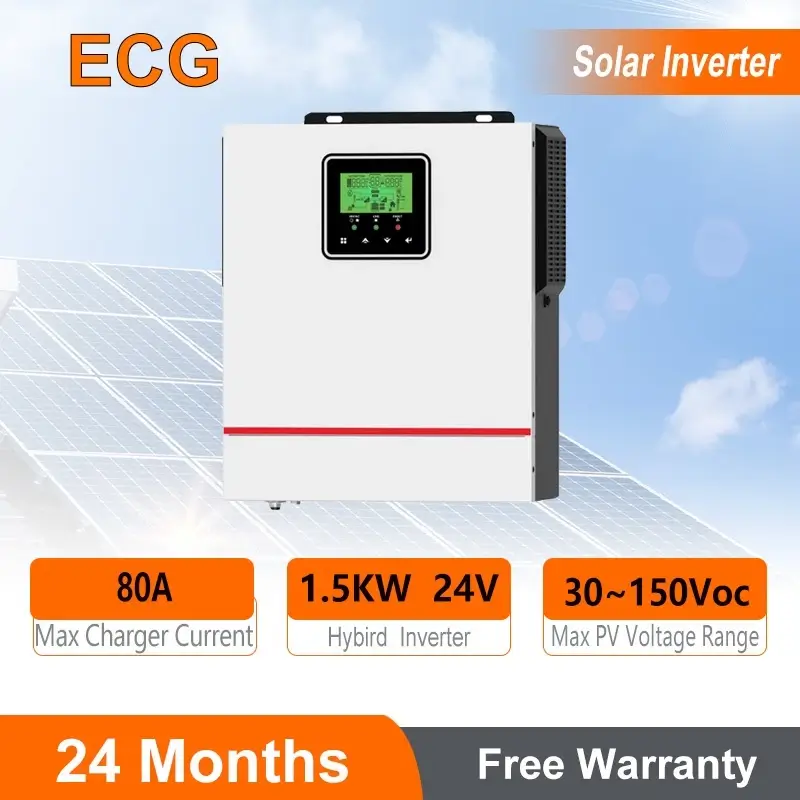

24V System40A MPPT
24V Hybrid Solar System
ECG 1.5kW
A 1.5kW 24V unit for a small Filipino home — powers lights, fans, a TV, an inverter fridge, and multiple devices concurrently with wireless monitoring. The 40A MPPT accepts up to 1,200W of PV input — double the capacity of similar 1500W models — harvesting more solar energy to reduce grid dependence.
Power
1.5 kW
Battery
24 V
Charge
40 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the ECG 1.5kW series.
Solar & PV Input
- Max Array
- 1,200 W
- Max Voltage
- 150 V
- MPPT Current
- 40 A
AC Output Specs
- Rated Output
- 1,500 W
- Voltage
- 220V ±5% (Adjustable)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- LiFePO4 / AGM
- Nominal V
- 24 V
- Max Charge
- 40 A
Build Quality
- Net Weight
- 3.5 kg
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the ECG 1.5kW — sized at its rated output.
Battery breaker
80A DC
Battery cable
4 AWG
AC load breaker
10A AC
PV cable
10 AWG
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 1,500W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
885W
Safezone: you still have 615W headroom for surges (pumps, kettles, etc.)
LED bulb (10×)
90W
Electric fan (3×)
180W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
