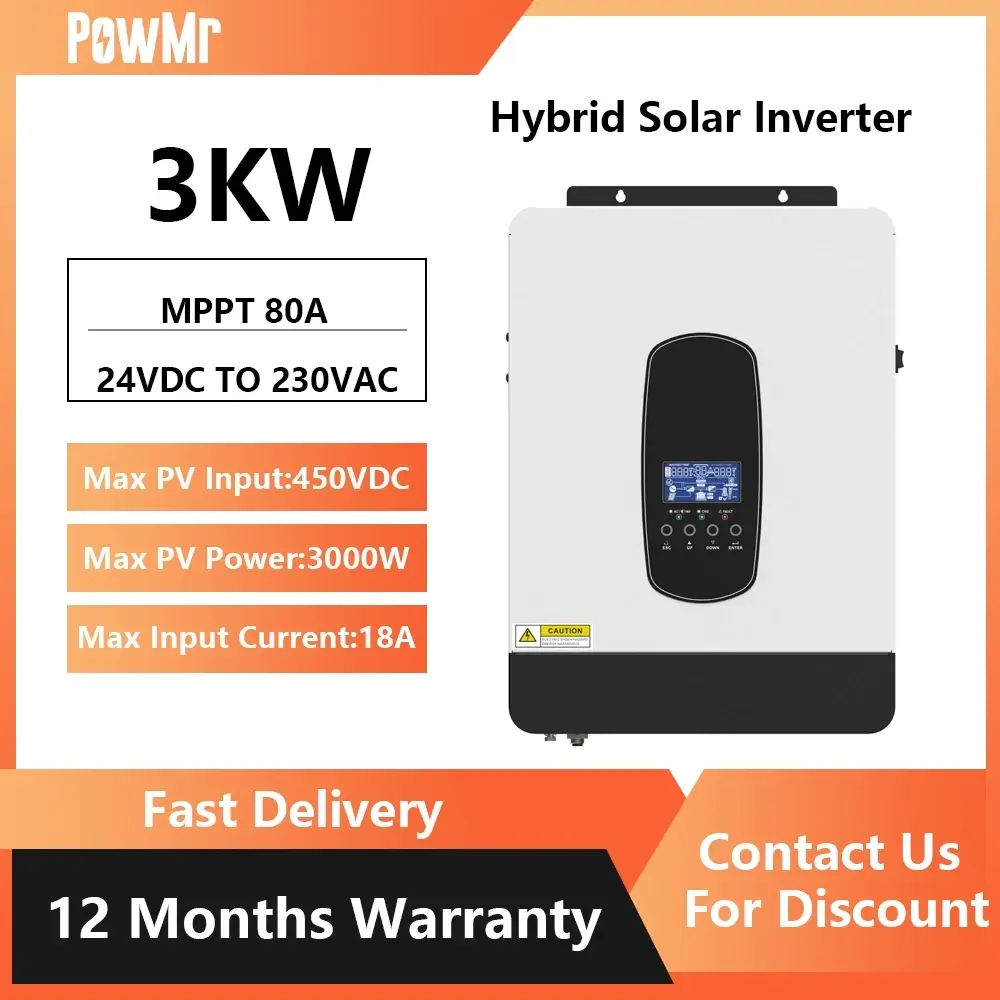

24V System80A MPPT
24V Hybrid Solar System
ECG 3.0kW
A 3kW 24V unit for a 2–3 bedroom Filipino home with wireless monitoring — simultaneously powers lights, fans, a TV, an inverter fridge, a washing machine, and a water pump. The 80A MPPT with 450V Voc supports long panel strings for clean, low-loss wiring up to 3,000W of solar input.
Power
3.0 kW
Battery
24 V
Charge
80 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the ECG 3.0kW series.
Solar & PV Input
- Max Array
- 3,000 W
- Max Voltage
- 450 V
- MPPT Current
- 80 A
AC Output Specs
- Rated Output
- 3,000 W
- Voltage
- 220V ±5% (Adjustable)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- LiFePO4 / AGM
- Nominal V
- 24 V
- Max Charge
- 60 A
Build Quality
- Net Weight
- 5.5 kg
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the ECG 3.0kW — sized at its rated output.
Battery breaker
160A DC
Battery cable
1/0 AWG
AC load breaker
20A AC
PV cable
10 AWG
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 3,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
1,263W
Safezone: you still have 1,737W headroom for surges (pumps, kettles, etc.)
LED bulb (12×)
108W
Electric fan (4×)
240W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
Desktop PC with …
300W
