Lumentree SUNT-4.0kW-HP

₱31,000.00

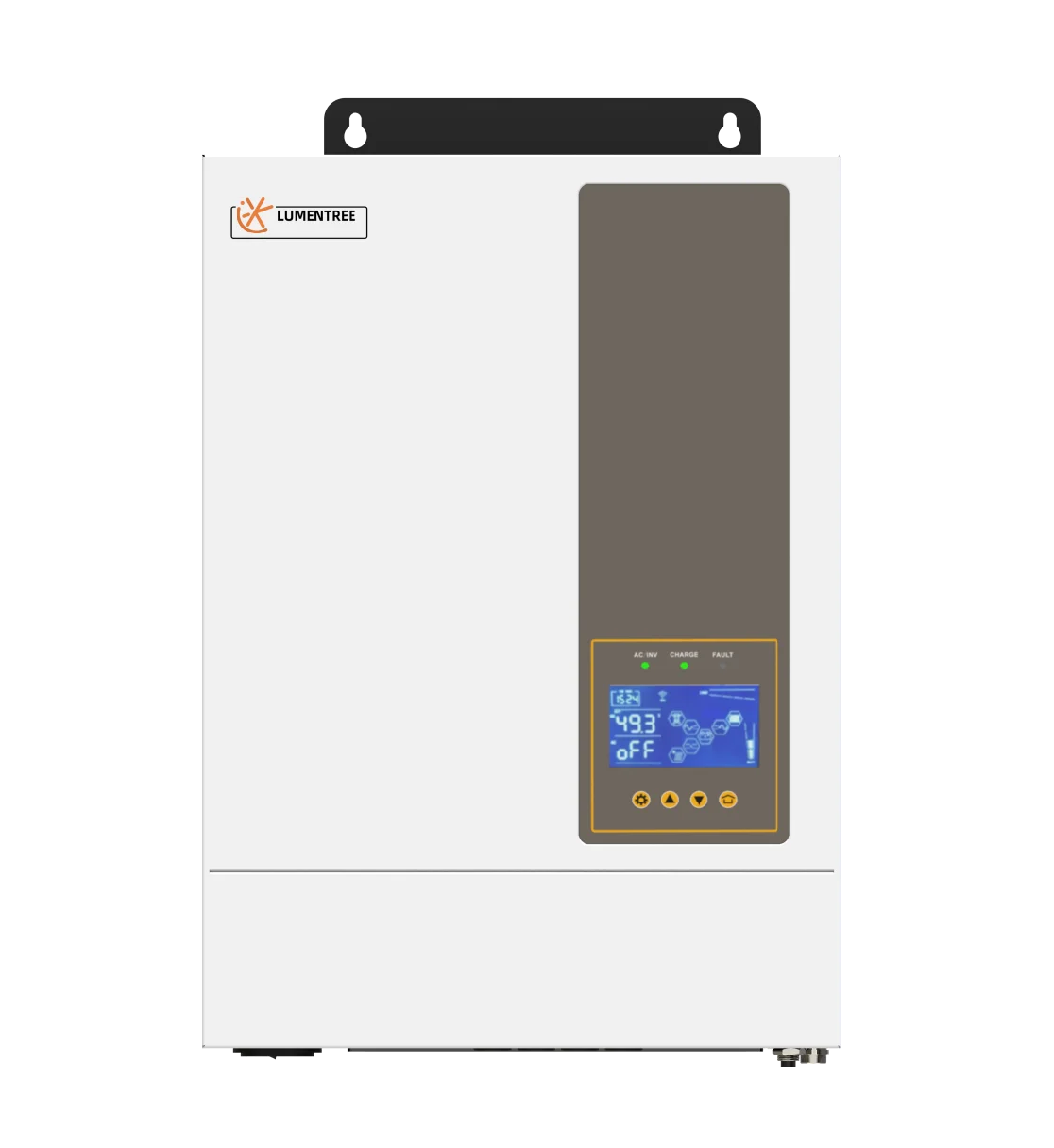

Lumentree SUNT-4.0kW-HP 48V 60A 4000W
48V System60A MPPT
48V Hybrid Solar System

Lumentree SUNT-4.0kW-HP

The Lumentree SUNT-4.0kW-HP Hybrid Inverter, with built-in MPPT trackers, represents a pinnacle in power management. It provides users with a versatile and highly efficient solution for achieving energy parity targets. This compact and efficient device excels at managing power flow from diverse sources, including solar, mains power (grid), and generators. Its compatibility with both Li-ion and lead-acid batteries ensures a flexible and adaptable energy storage solution.

Power

4.0 kW

Battery

48 V

Charge

60 A

Gallery

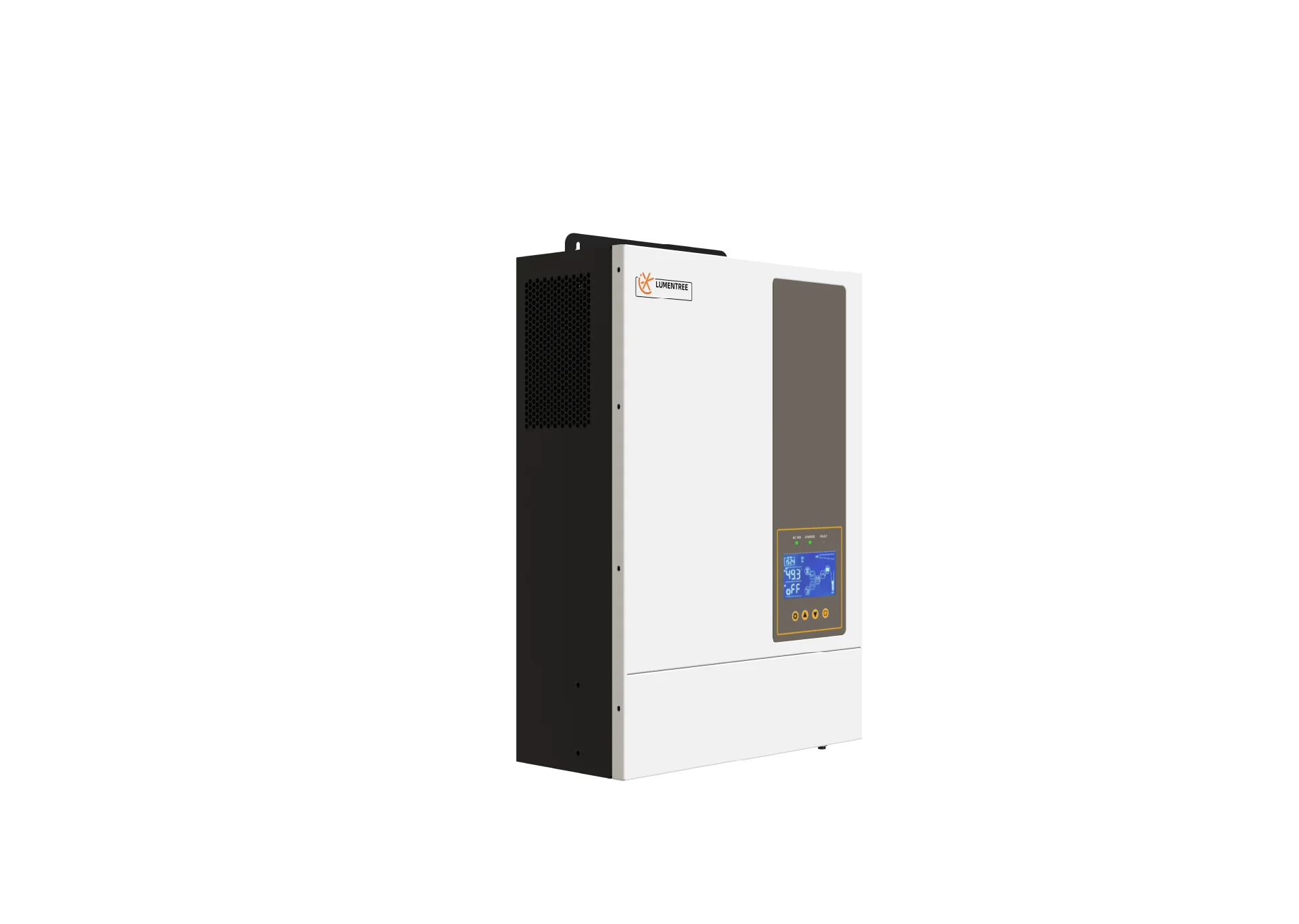

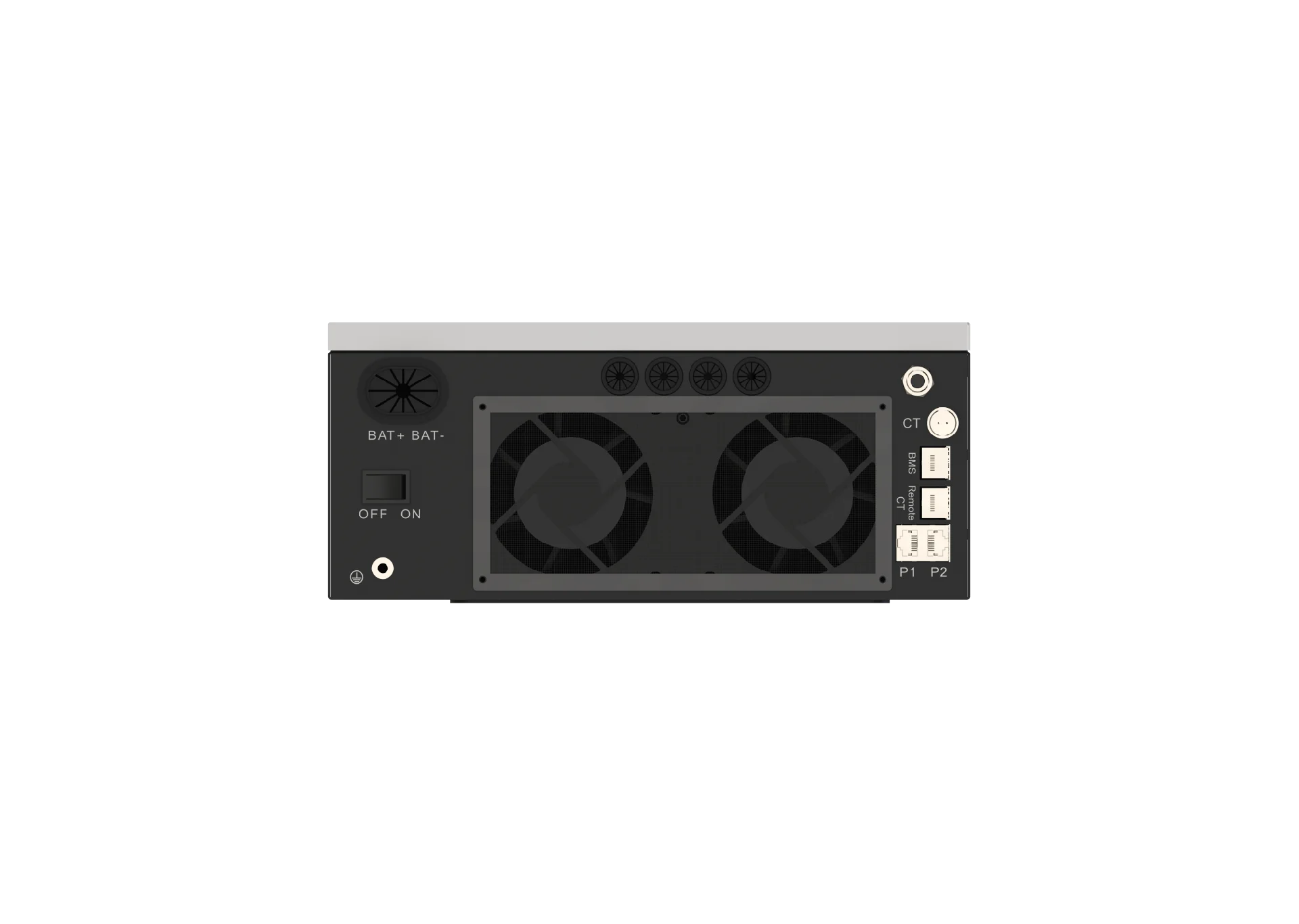

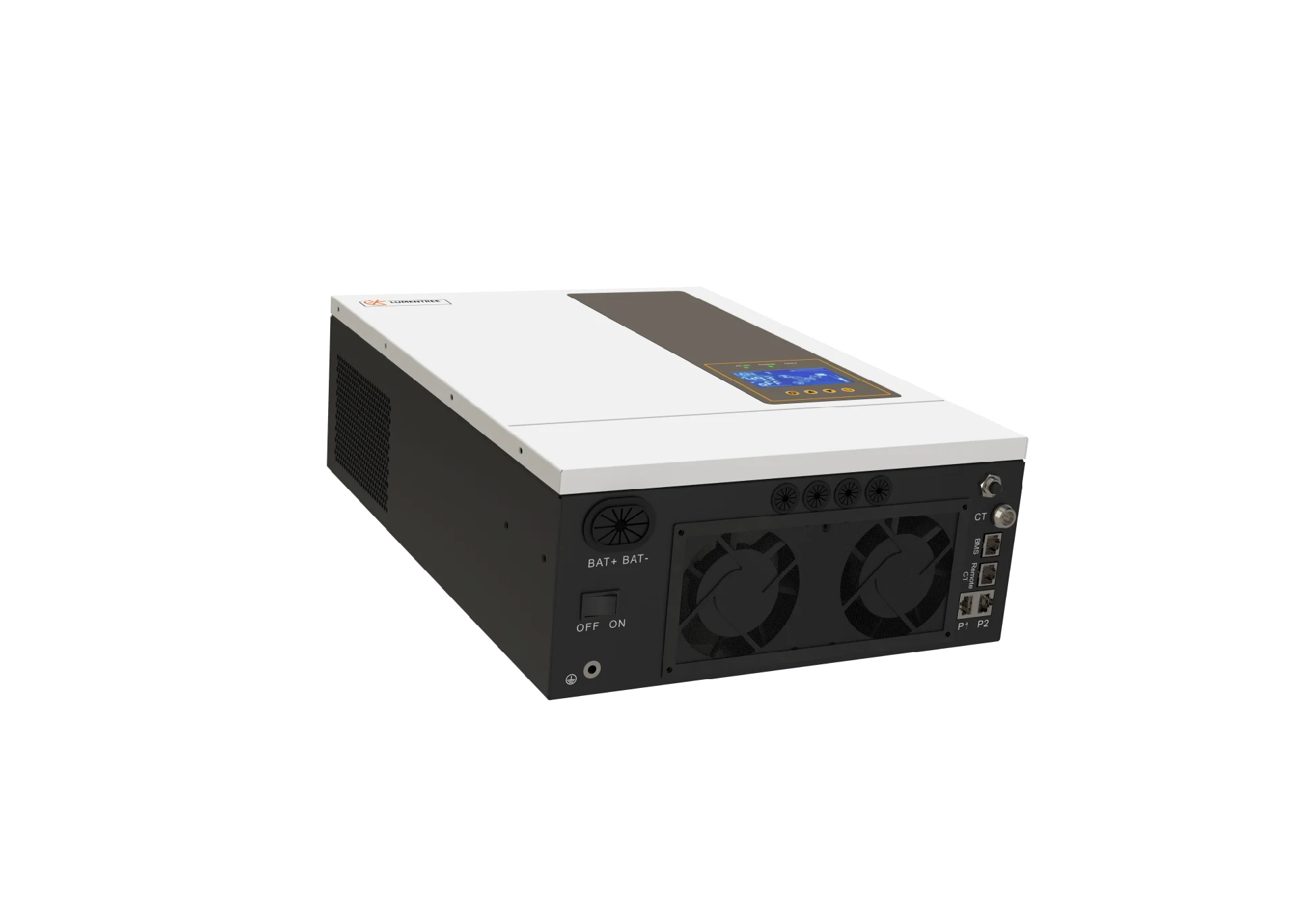

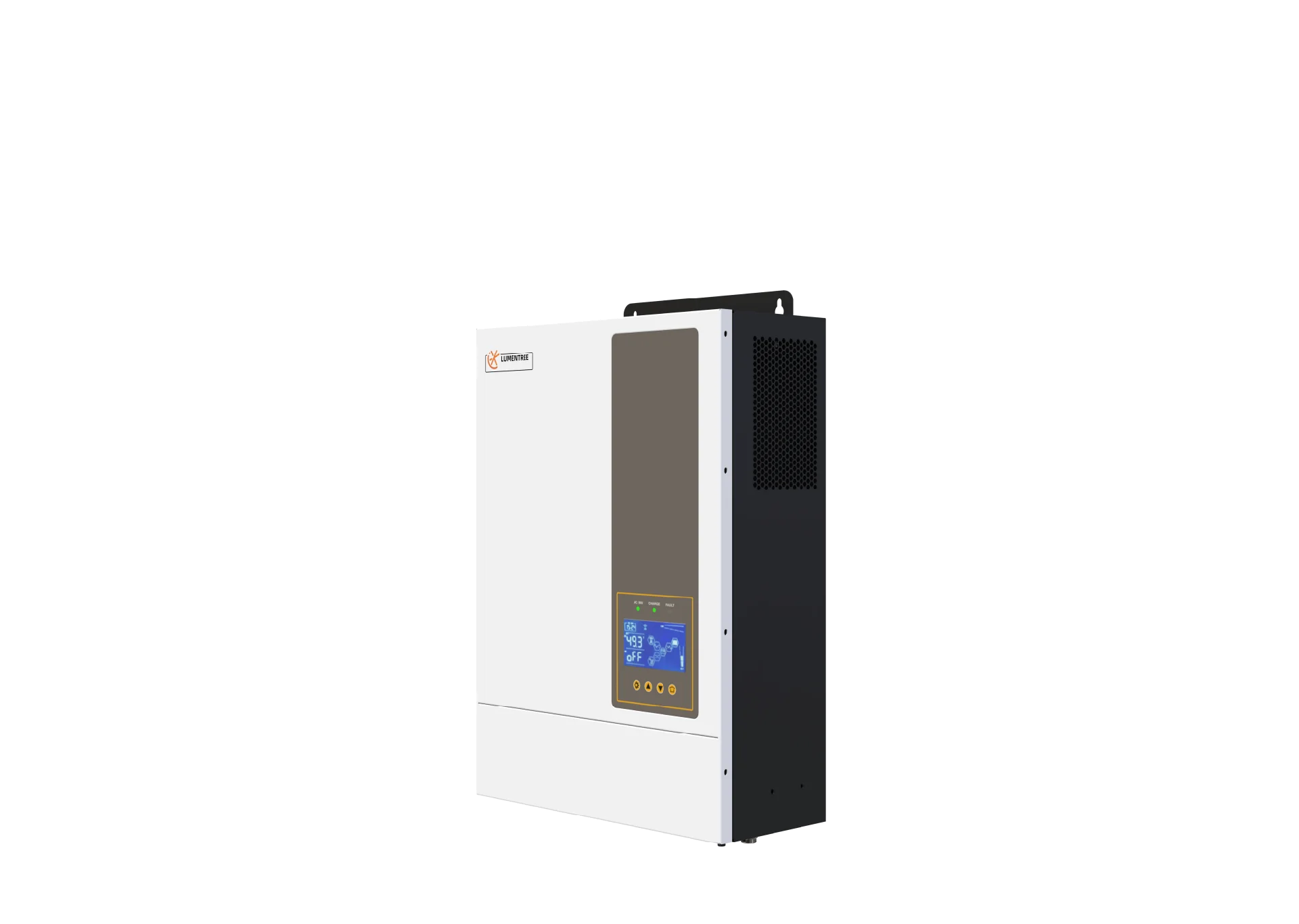

Product images for the Lumentree SUNT-4.0kW-HP.

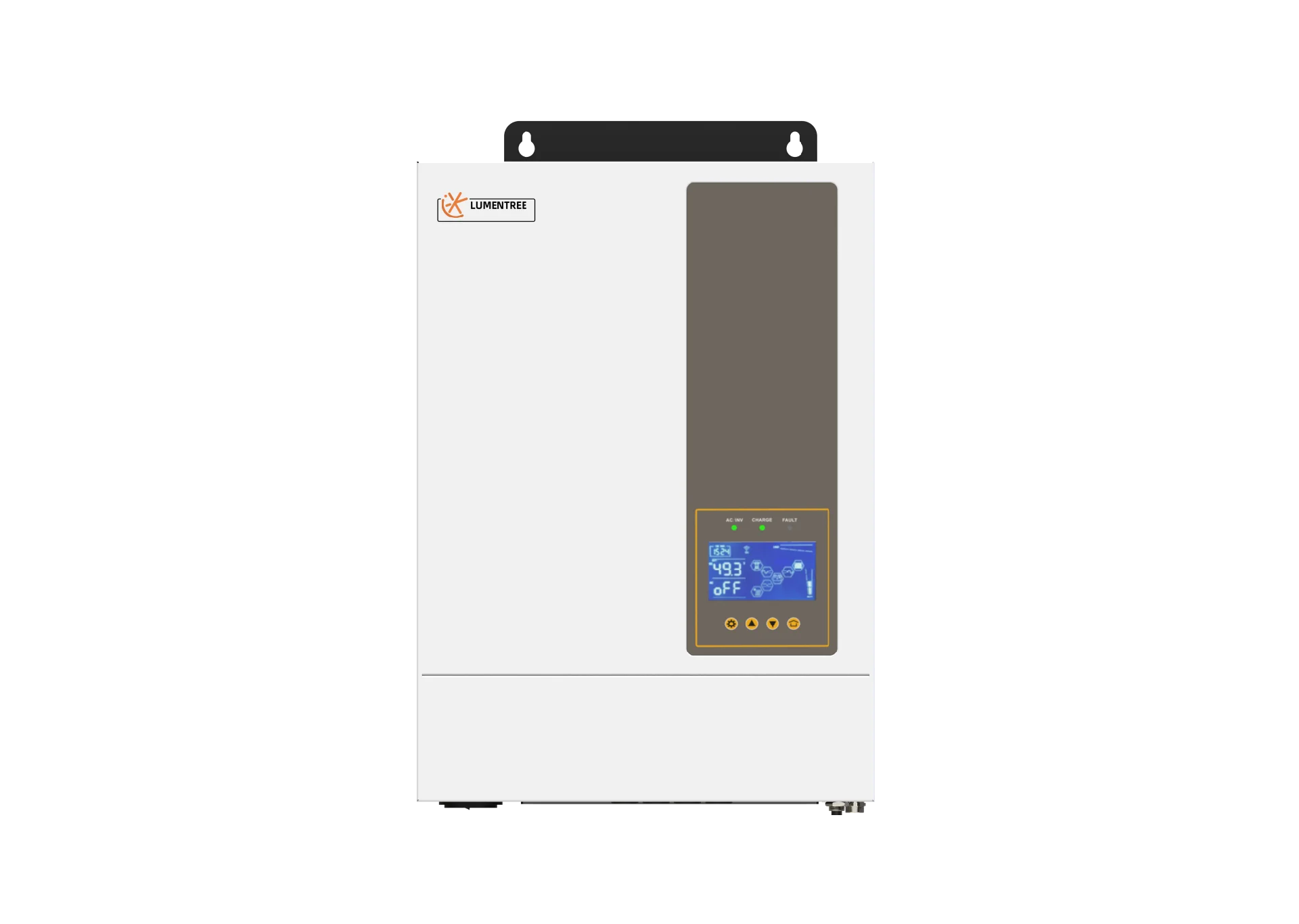

Lumentree SUNT-4.0kW-HP — image 1Click to enlarge

Technical Blueprint

Deep dive into the electrical capabilities of the Lumentree 4.0kW series.

Download Manual (PDF)

Solar & PV Input

Max Array
4,800 W
Max Voltage
500 V
Startup Voltage
150 V
MPPT Range
120–450V
MPPT Current
15 A

AC Output Specs

Rated Output
4,000 W
Max Output Current
18 A
Max Bypass Current
40 A
Voltage
220/230/240V (Configurable) Single Phase
Waveform
Pure Sine

Battery Logic

Chemistry
LiFePO4 / Lead-Acid
Nominal V
48 V
Max Charge
60 A
Max Discharge
90 A

Build Quality

Net Weight
10.1 kg
Dimensions
466×307×134 mm

Wiring Specs

Breaker rating and wire gauge for every run on the Lumentree 4.0kW — sized at its rated output.

Battery breaker

125A DC

Battery cable

2 AWG

AC load breaker

25A AC

PV cable

10 AWG

See all five runs

Documentation & official link

Links below open the manufacturer's site or PDF manual. You will see a short notice before leaving Solar Panda.

Official product pageUser manual

What can it actually
run?

Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 4,000W unit supporting a typical Filipino household's daytime loads.

Total DemandActive Load
1,​681W

Safezone: you still have 2,319W headroom for surges (pumps, kettles, etc.)

LED bulb (14×)

126W

Electric fan (4×)

240W

LED/Smart TV

150W

Laptop charger

65W

Smartphone charger (5×)

50W

Refrigerator – i…

250W

Water dispenser

80W

Wi-Fi router

20W

Desktop PC with …

300W

Air cooler

400W
