48V System120A MPPT
48V Hybrid Solar System
Lumentree SUNT-6.0kW-S
IP65 Hybrid Inverter delivers reliable performance in both residential and commercial solar systems, with excellent protection against dust and water. It’s compatible with both LiFePO4 and lead-acid batteries, providing flexible energy storage solutions.
Power
6.0 kW
Battery
48 V
Charge
120 A
Gallery

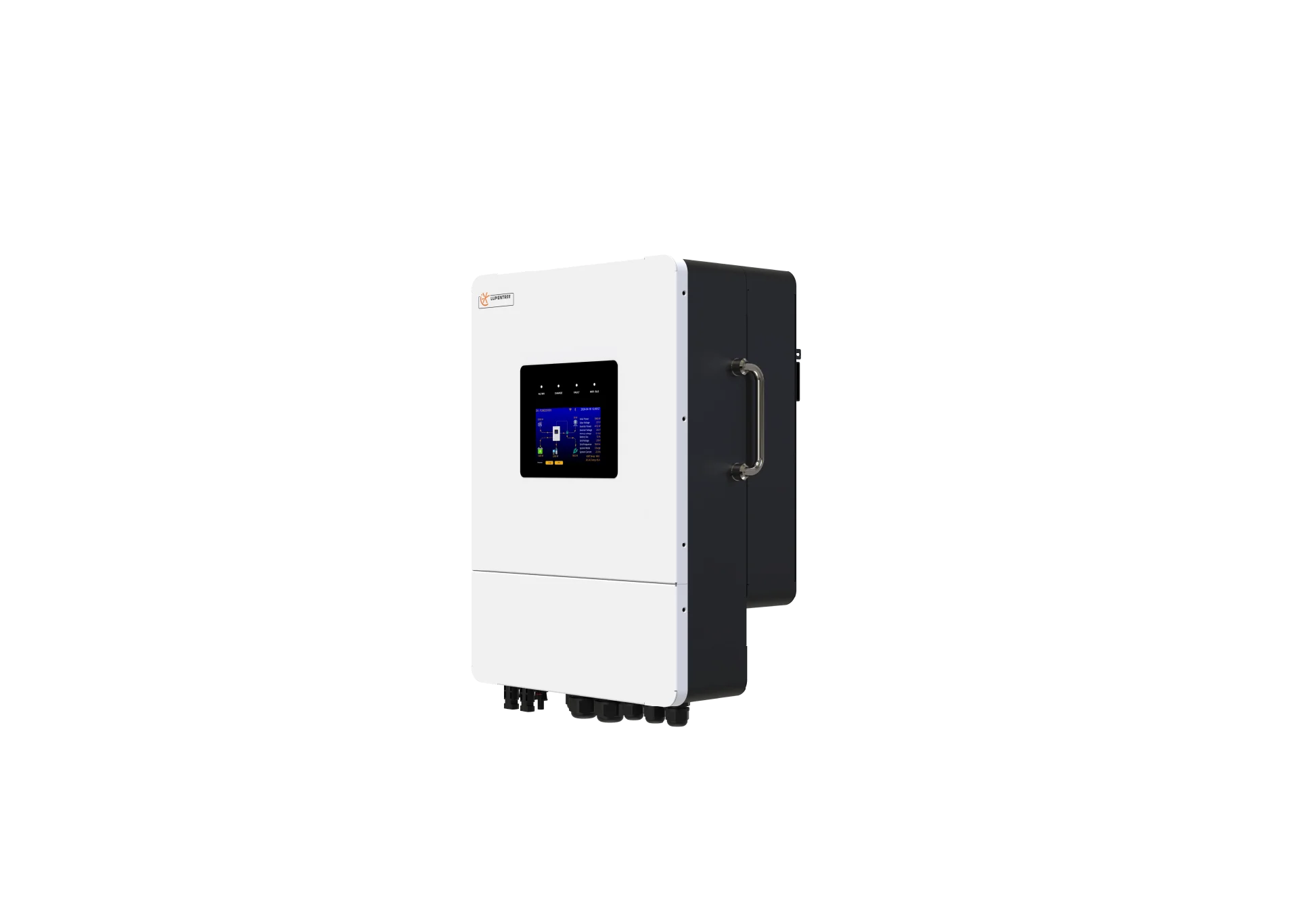

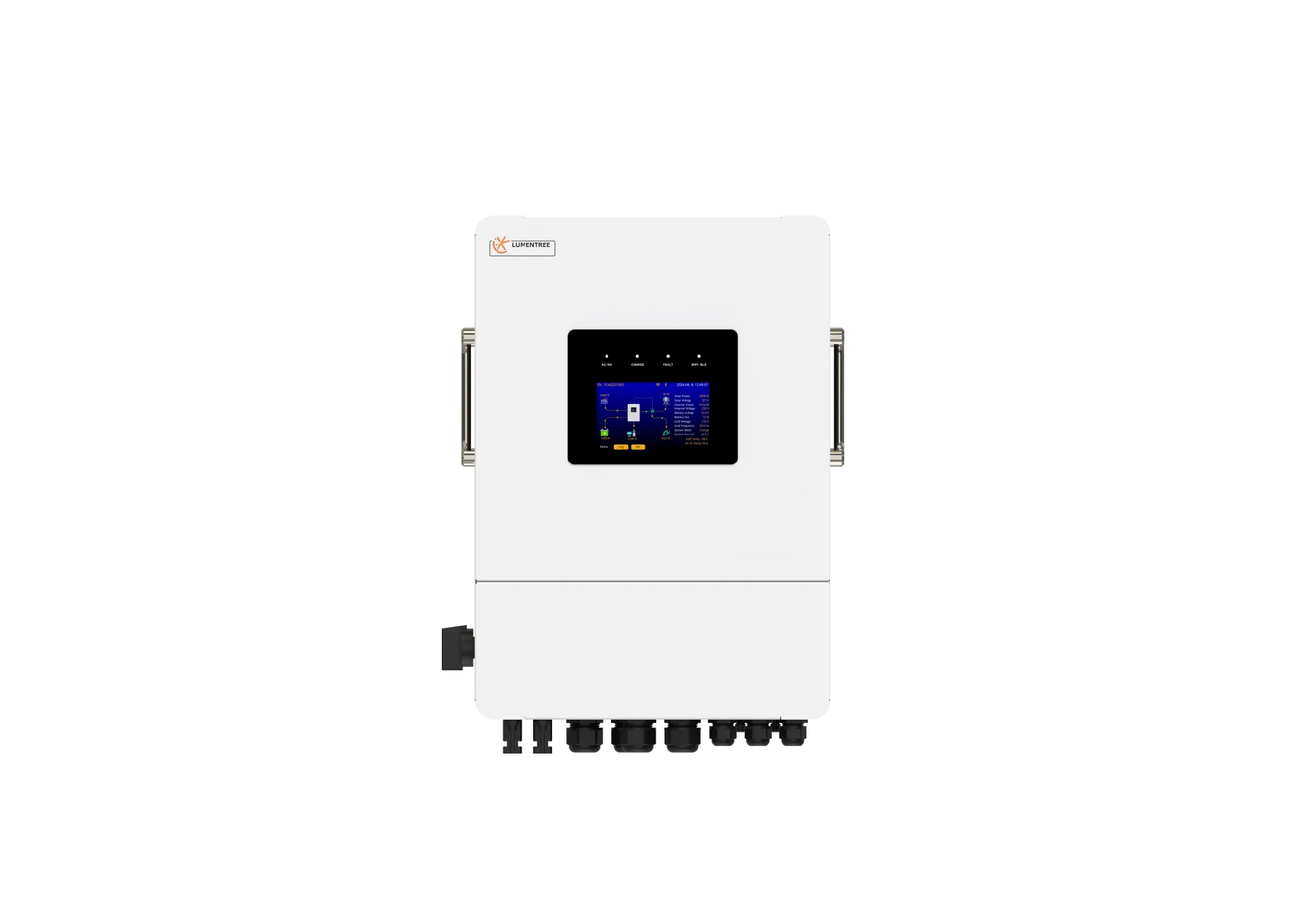

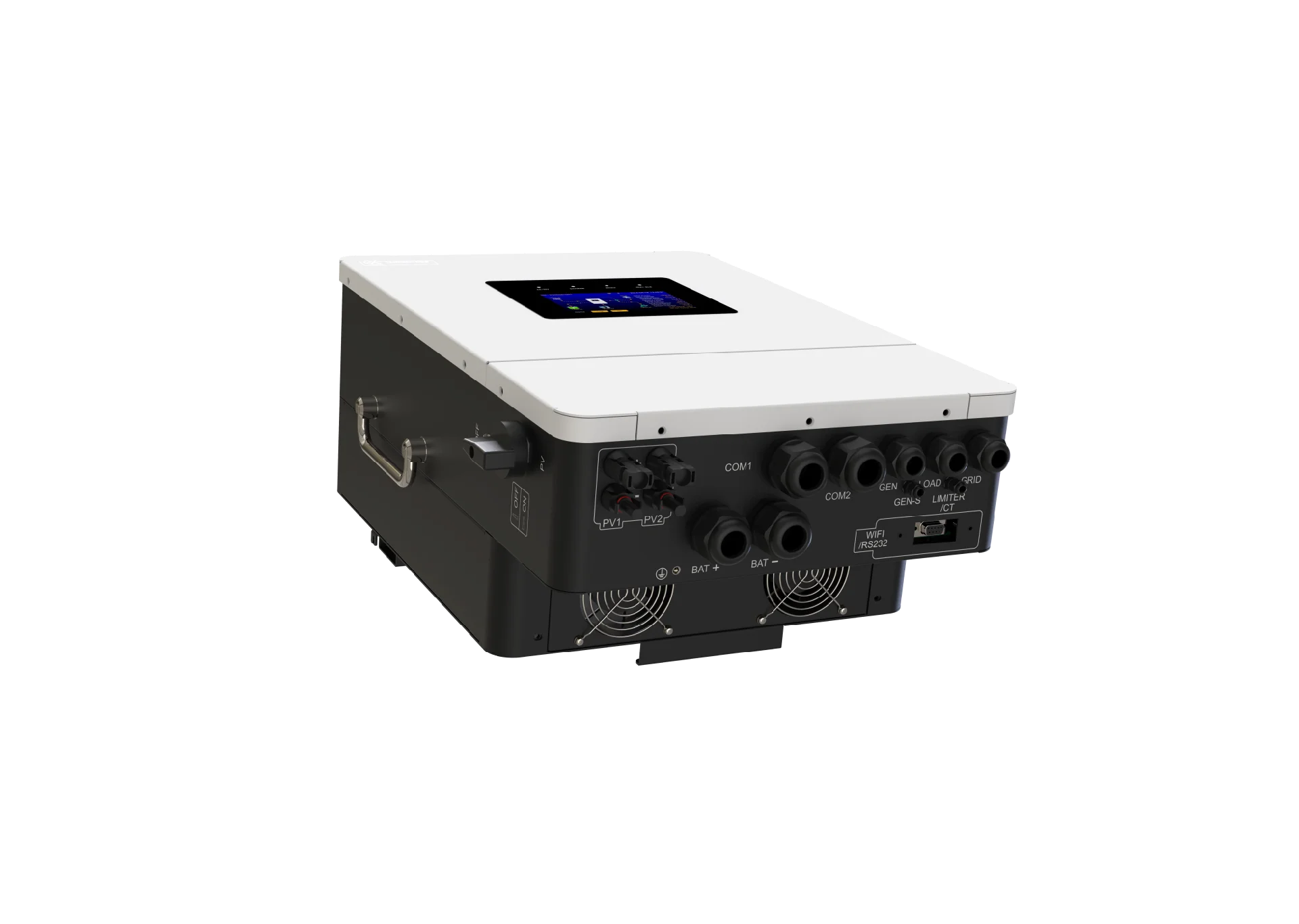

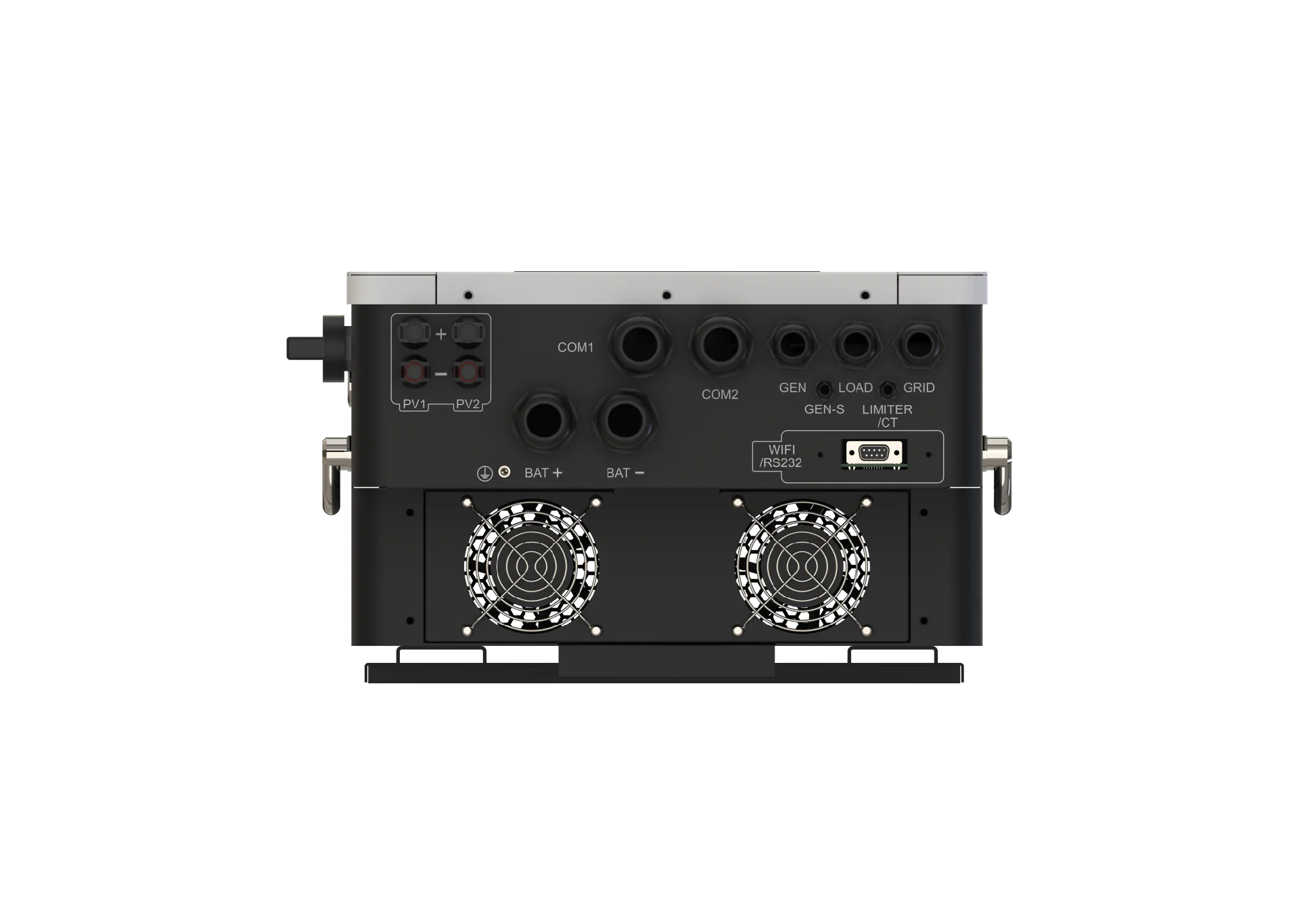

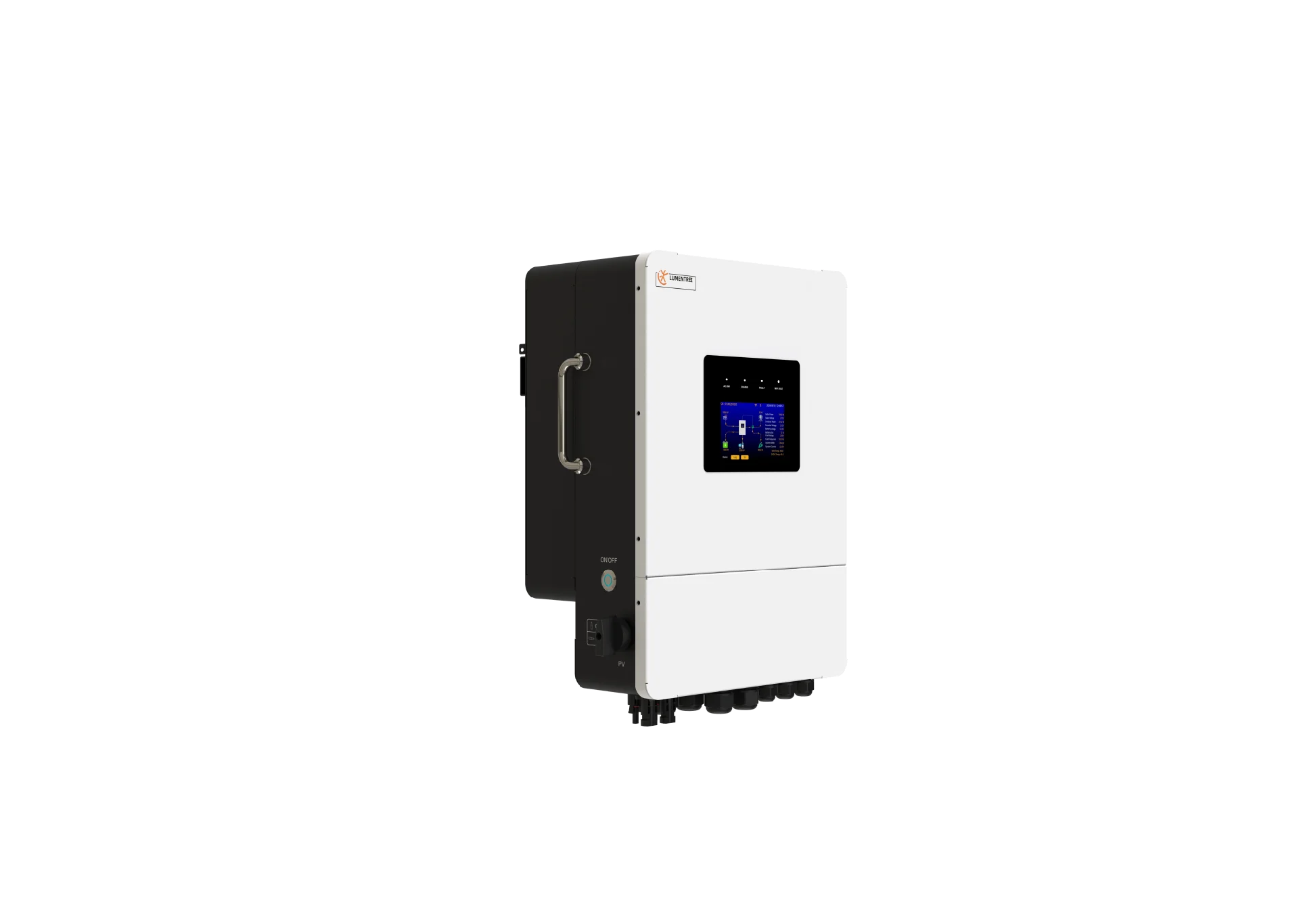

Product images for the Lumentree SUNT-6.0kW-S.
Click to enlargeTechnical Blueprint
Deep dive into the electrical capabilities of the Lumentree 6.0kW series.
Solar & PV Input
- Max Array
- 9,600 W
- Max Voltage
- 500 V
- Startup Voltage
- 150 V
- MPPT Range
- 120–450V
- MPPT Current
- 18 A
AC Output Specs
- Rated Output
- 6,000 W
- Max Output Current
- 27 A
- Max Bypass Current
- 40 A
- Voltage
- 220/230/240V (Configurable) Single Phase
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- LiFePO4 / Lead-Acid
- Nominal V
- 48 V
- Max Charge
- 120 A
- Max Discharge
- 130 A
Build Quality
- Net Weight
- 26 kg
- Dimensions
- 538×402×227 mm
Wiring Specs
Breaker rating and wire gauge for every run on the Lumentree 6.0kW — sized at its rated output.
Battery breaker
180A DC
Battery cable
1/0 AWG
AC load breaker
40A AC
PV cable
10 AWG
Documentation & official link
Links below open the manufacturer's site or PDF manual. You will see a short notice before leaving Solar Panda.
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 6,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
2,219W
Safezone: you still have 3,781W headroom for surges (pumps, kettles, etc.)
LED bulb (16×)
144W
Electric fan (6×)
360W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
Desktop PC with …
300W
Split-type airco…
800W
