24V System60A MPPT
24V Hybrid Solar System

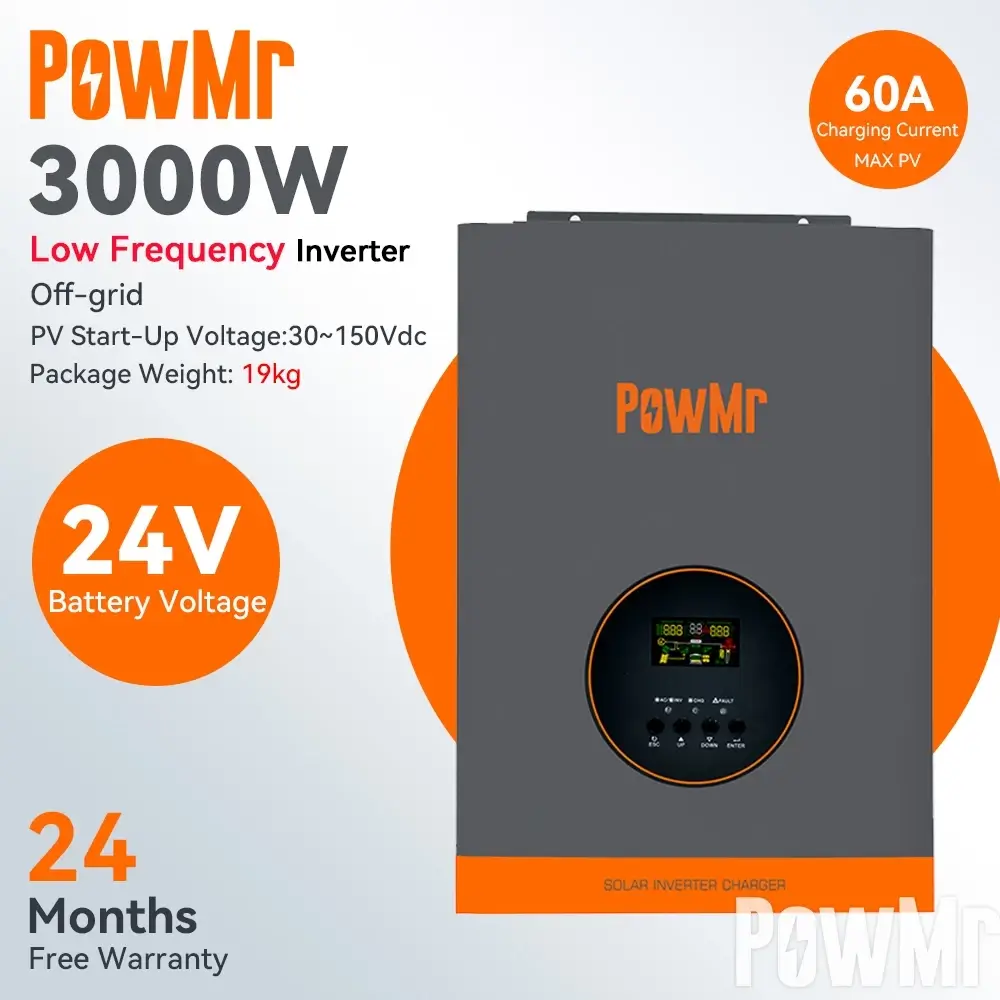

PowMr 3.0kW
A 3kW 24V unit for a 2-bedroom Filipino home — powers lights, fans, a TV, an inverter fridge, washing machine, and a rice cooker simultaneously. The 60A MPPT is limited to 1,600W of solar input at 150V Voc, so plan panel strings carefully to maximize what the controller can harvest.
Power
3.0 kW
Battery
24 V
Charge
60 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the PowMr 3.0kW series.
Solar & PV Input
- Max Array
- 1,600 W
- Max Voltage
- 150 V
- MPPT Range
- 30–150V
- MPPT Current
- 60 A
AC Output Specs
- Rated Output
- 3,000 W
- Voltage
- 220V ±5% (Adjustable)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- LiFePO4 / AGM
- Nominal V
- 24 V
- Max Charge
- 60 A
Build Quality
- Net Weight
- 6.1 kg
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the PowMr 3.0kW — sized at its rated output.
Battery breaker
160A DC
Battery cable
1/0 AWG
AC load breaker
20A AC
PV cable
10 AWG
Documentation & official link
Links below open the manufacturer's site or PDF manual. You will see a short notice before leaving Solar Panda.
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 3,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
1,263W
Safezone: you still have 1,737W headroom for surges (pumps, kettles, etc.)
LED bulb (12×)
108W
Electric fan (4×)
240W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
Desktop PC with …
300W
