12V System80A MPPT
12V Hybrid Solar System

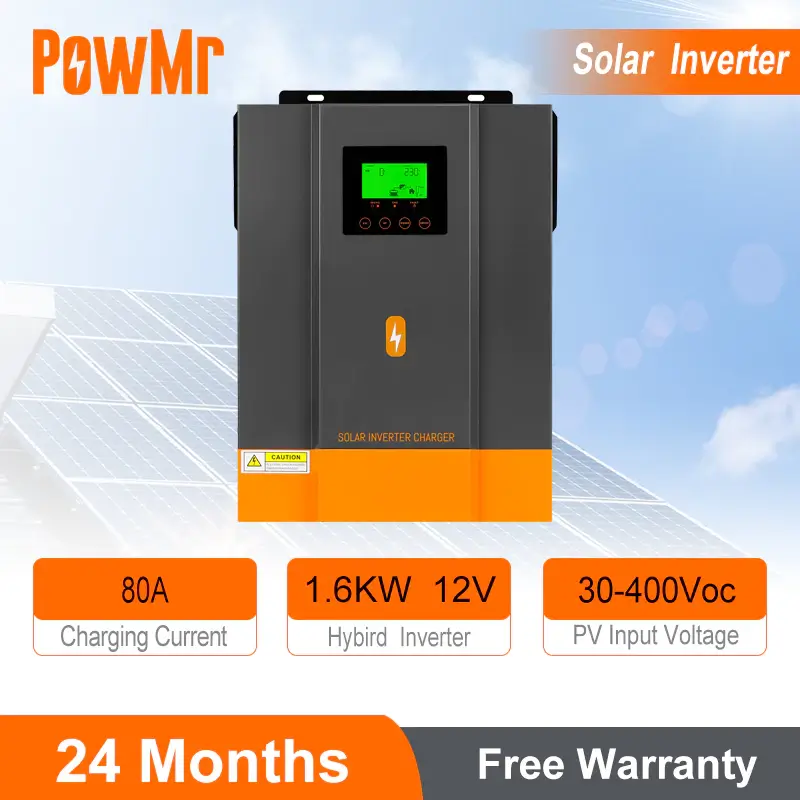

PowMr POW-HVM2H-12V-N
A 1.6kW 12V inverter with an oversized 80A MPPT controller accepting up to 2,000W of solar panels at 400V Voc — giving a 12V system significantly more solar charging than typical competitors. Keeps lights, fans, a TV, an inverter fridge, and a washing machine running in a small Filipino home.
Power
1.6 kW
Battery
12 V
Charge
80 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the PowMr 1.6kW series.
Solar & PV Input
- Max Array
- 2,000 W
- Max Voltage
- 400 V
- MPPT Range
- 30–400V
- MPPT Current
- 80 A
AC Output Specs
- Rated Output
- 1,600 W
- Voltage
- 220V ±5% (Adjustable)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- LiFePO4 / AGM
- Nominal V
- 12 V
- Max Charge
- 60 A
Build Quality
- Net Weight
- 6 kg
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the PowMr 1.6kW — sized at its rated output.
Battery breaker
180A DC
Battery cable
1/0 AWG
AC load breaker
10A AC
PV cable
10 AWG
Documentation & official link
Links below open the manufacturer's site or PDF manual. You will see a short notice before leaving Solar Panda.
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 1,600W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
885W
Safezone: you still have 715W headroom for surges (pumps, kettles, etc.)
LED bulb (10×)
90W
Electric fan (3×)
180W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
