48V System200A MPPT
48V Hybrid Solar System

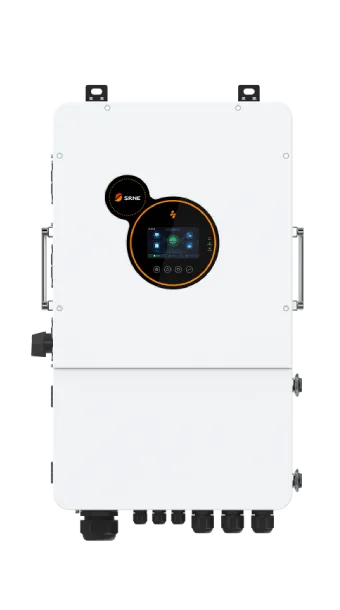

SRNE HESP4880U200-H
An 8.8kW 48V split-phase SRNE unit for US-market installations (120/240Vac) — powers a full home simultaneously with a 17.6kW peak surge capacity that handles large motor starts (up to 5HP). Dual independent 5,500W MPPT controllers harvest up to 11,000W of solar panels, and IP65 waterproofing allows outdoor wall mounting.
Power
8.8 kW
Battery
48 V
Charge
200 A
Prices shown are estimated retail prices. No online store link available yet.
Technical Blueprint
Deep dive into the electrical capabilities of the SRNE 8.8kW series.
Solar & PV Input
- Max Array
- 11,000 W
- Max Voltage
- 500 V
- MPPT Range
- 120–500V
- MPPT Current
- 100 A
AC Output Specs
- Rated Output
- 8,800 W
- Voltage
- 120/240Vac Split-Phase
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lead-Acid / AGM
- Nominal V
- 48 V
- Max Charge
- 200 A
Build Quality
- Net Weight
- 42 kg
- Dimensions
- 750×440×240 mm
Wiring Specs
Breaker rating and wire gauge for every run on the SRNE 8.8kW — sized at its rated output.
Battery breaker
250A DC
Battery cable
4/0 AWG
AC load breaker
50A AC
PV cable
10 AWG
Documentation & official link
Links below open the manufacturer's site or PDF manual. You will see a short notice before leaving Solar Panda.
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 8,800W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
3,600W
Safezone: you still have 5,200W headroom for surges (pumps, kettles, etc.)
LED bulb (20×)
180W
Electric fan (6×)
360W
LED/Smart TV (2×)
300W
Laptop charger (2×)
130W
Smartphone charger (8×)
80W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
Desktop PC with … (2×)
600W
Split-type airco… (2×)
1,600W
