48V System80A MPPT
48V Hybrid Solar System

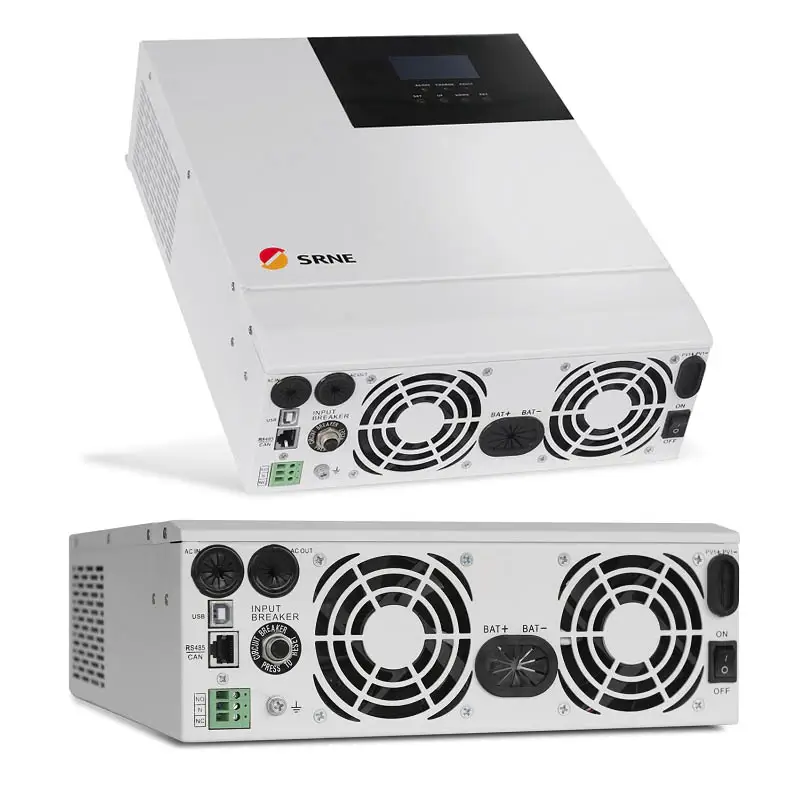

SRNE HF4850S80-145
A 5kW 48V SRNE unit for a large 3-bedroom Filipino home — runs 2 × 1HP inverter aircon, inverter fridge, washing machine, water pump, and full lighting at once. The 80A MPPT handles up to 4,400W of solar panels, though the 145V Voc ceiling limits panel string length to shorter configurations.
Power
5.0 kW
Battery
48 V
Charge
80 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the SRNE 5.0kW series.
Solar & PV Input
- Max Array
- 4,400 W
- Max Voltage
- 145 V
- MPPT Range
- 120–450V
- MPPT Current
- 80 A
AC Output Specs
- Rated Output
- 5,000 W
- Voltage
- 230 V
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lead-Acid / AGM
- Nominal V
- 48 V
- Max Charge
- 80 A
Build Quality
- Net Weight
- 10.9 kg
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the SRNE 5.0kW — sized at its rated output.
Battery breaker
150A DC
Battery cable
1 AWG
AC load breaker
32A AC
PV cable
10 AWG
Documentation & official link
Links below open the manufacturer's site or PDF manual. You will see a short notice before leaving Solar Panda.
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 5,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
1,741W
Safezone: you still have 3,259W headroom for surges (pumps, kettles, etc.)
LED bulb (14×)
126W
Electric fan (5×)
300W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
Desktop PC with …
300W
Air cooler
400W
