48V System135A MPPT
48V Hybrid Solar System

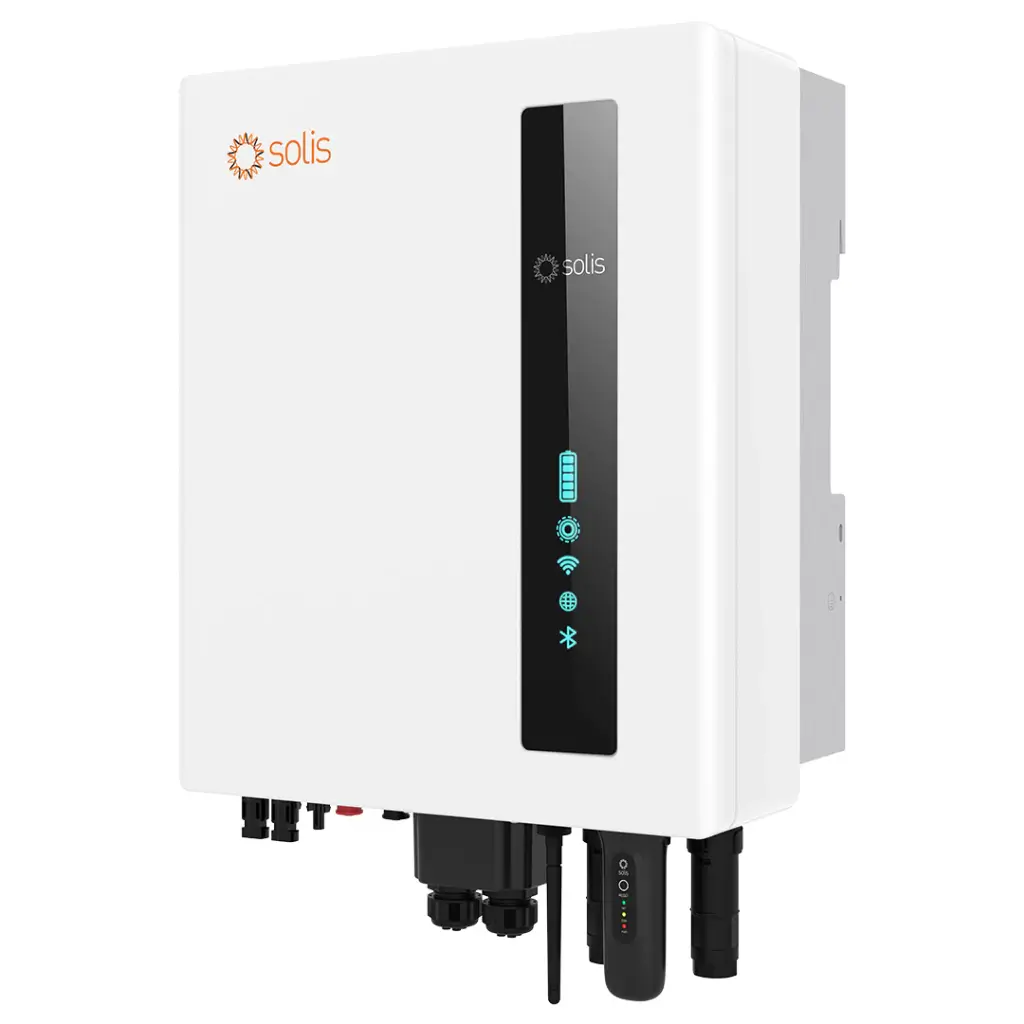

Solis S6-EH1P6K-L-PRO
A premium Solis 6kW 48V unit for a large Filipino home — powers 2 × 1.5HP inverter aircon, inverter fridge, washing machine, water pump, lights, and fans simultaneously. The headline spec is a 600V maximum Voc with up to 12,000W of PV input, enabling very long panel strings and significantly lower balance-of-system wiring costs than 500V peers.
Power
6.0 kW
Battery
48 V
Charge
135 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the Solis 6.0kW series.
Solar & PV Input
- Max Array
- 9,600 W
- Max Voltage
- 425 V
- MPPT Range
- 90–435V
- MPPT Current
- 21 A
AC Output Specs
- Rated Output
- 6,000 W
- Voltage
- 220 V
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- LiFePO4 / AGM
- Nominal V
- 48 V
- Max Charge
- 135 A
Build Quality
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the Solis 6.0kW — sized at its rated output.
Battery breaker
180A DC
Battery cable
1/0 AWG
AC load breaker
40A AC
PV cable
10 AWG
Documentation & official link
Links below open the manufacturer's site or PDF manual. You will see a short notice before leaving Solar Panda.
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 6,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
2,219W
Safezone: you still have 3,781W headroom for surges (pumps, kettles, etc.)
LED bulb (16×)
144W
Electric fan (6×)
360W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
Desktop PC with …
300W
Split-type airco…
800W
