48V System190A MPPT
48V Hybrid Solar System

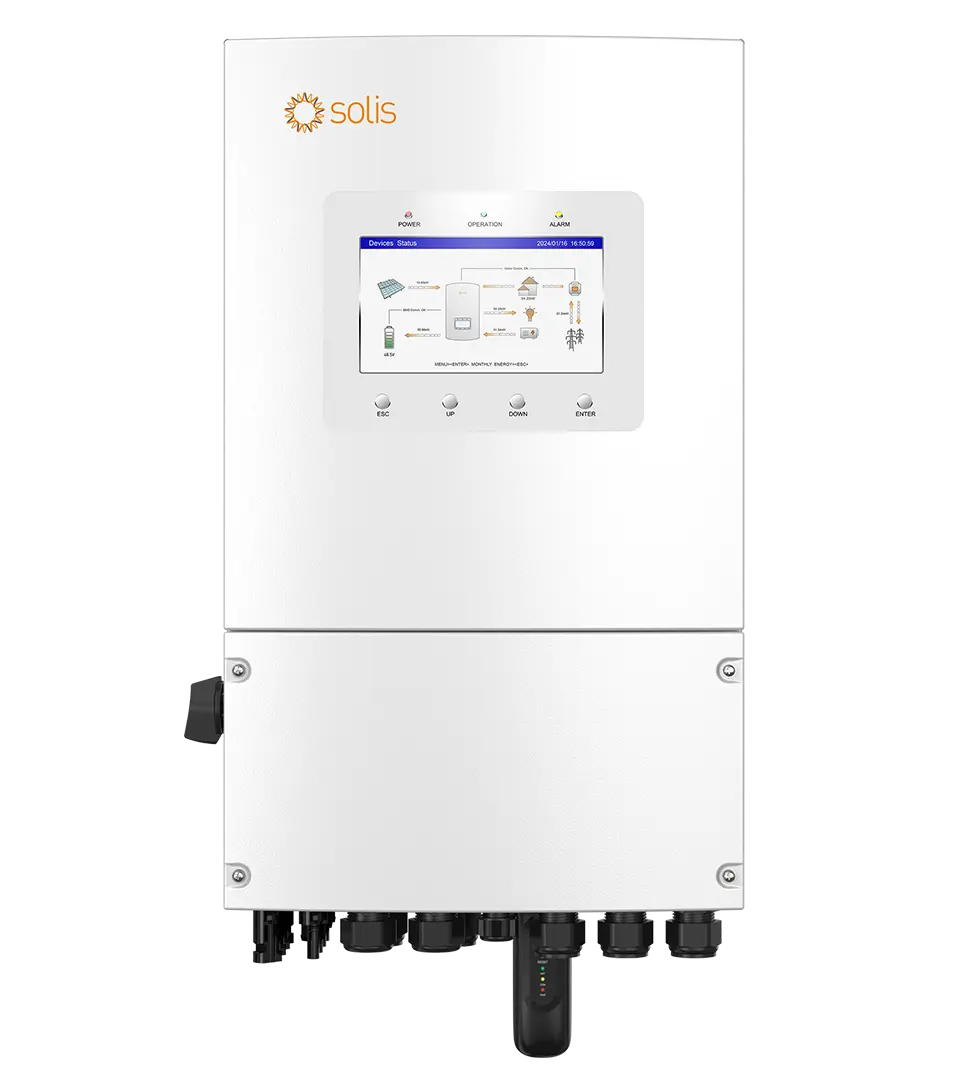

Solis S6-EH1P8K-L-PLUS
A high-spec Solis 8kW unit with 600V maximum Voc, up to 16,000W of PV input, and parallel stacking — one of the most capable solar-input specs available for an 8kW unit. Built for a large 4+ bedroom Filipino home or small business running 3–4 aircon units, with Solis's strong grid-hybrid reliability track record.
Power
8.0 kW
Battery
48 V
Charge
190 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the Solis 8.0kW series.
Solar & PV Input
- Max Array
- 12,800 W
- Max Voltage
- 425 V
- MPPT Range
- 90–435V
- MPPT Current
- 32 A
AC Output Specs
- Rated Output
- 8,000 W
- Voltage
- 0.85Un–1.1Un (187–253V)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- LiFePO4 / AGM
- Nominal V
- 48 V
- Max Charge
- 190 A
Build Quality
- Net Weight
- 22.2 kg
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the Solis 8.0kW — sized at its rated output.
Battery breaker
250A DC
Battery cable
4/0 AWG
AC load breaker
50A AC
PV cable
10 AWG
Documentation & official link
Links below open the manufacturer's site or PDF manual. You will see a short notice before leaving Solar Panda.
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 8,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
2,219W
Safezone: you still have 5,781W headroom for surges (pumps, kettles, etc.)
LED bulb (16×)
144W
Electric fan (6×)
360W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
Desktop PC with …
300W
Split-type airco…
800W
