12V System60A MPPT
12V Hybrid Solar System

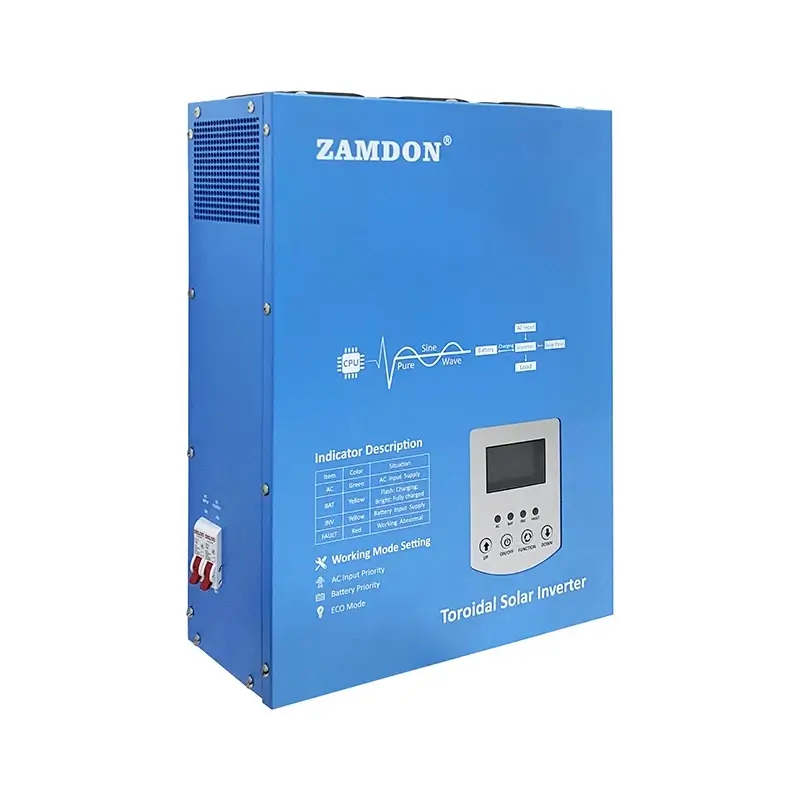

Zamdon 2.0kW
A 2kW 12V unit for an off-grid home on an existing 12V battery bank — powers lights, fans, a TV, an inverter fridge, and devices with the 60A MPPT accepting up to 840W of solar panels. Best suited where PV array expansion isn't a priority.
Power
2.0 kW
Battery
12 V
Charge
60 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the Zamdon 2.0kW series.
Solar & PV Input
- Max Array
- 840 W
- Max Voltage
- 120 V
- MPPT Current
- 60 A
AC Output Specs
- Rated Output
- 2,000 W
- Voltage
- 220V ±5% (Adjustable)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lead-Acid / AGM
- Nominal V
- 12 V
- Max Charge
- 60 A
Build Quality
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the Zamdon 2.0kW — sized at its rated output.
Battery breaker
225A DC
Battery cable
3/0 AWG
AC load breaker
16A AC
PV cable
10 AWG
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 2,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
885W
Safezone: you still have 1,115W headroom for surges (pumps, kettles, etc.)
LED bulb (10×)
90W
Electric fan (3×)
180W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
