48V System100A MPPT
48V Hybrid Solar System

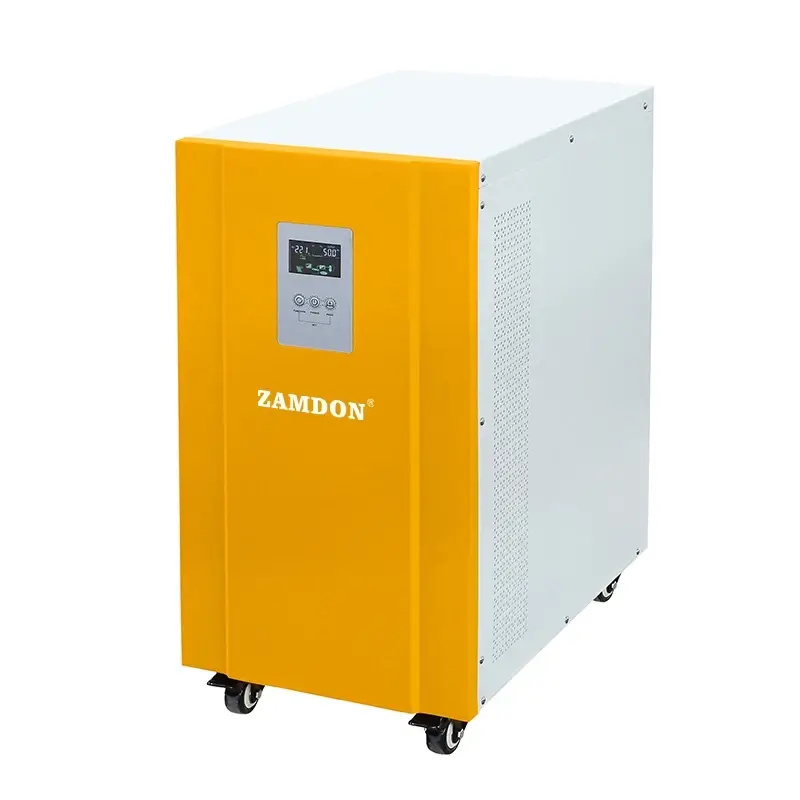

Zamdon 10.0kW
A 10kW 48V unit for a large multi-room Filipino home or small business — simultaneously powers 4 × 1HP inverter aircon units, multiple large appliances, and full lighting. PV input is capped at 5,600W with a 150V Voc ceiling, so additional charge controllers are recommended for a solar array matched to this unit's capacity.
Power
10.0 kW
Battery
48 V
Charge
100 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the Zamdon 10.0kW series.
Solar & PV Input
- Max Array
- 5,600 W
- Max Voltage
- 150 V
- MPPT Current
- 100 A
AC Output Specs
- Rated Output
- 10,000 W
- Voltage
- 220V ±5% (Adjustable)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lead-Acid / AGM
- Nominal V
- 48 V
- Max Charge
- 100 A
Build Quality
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the Zamdon 10.0kW — sized at its rated output.
Battery breaker
300A DC
Battery cable
350MCM
AC load breaker
63A AC
PV cable
10 AWG
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 10,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
3,670W
Safezone: you still have 6,330W headroom for surges (pumps, kettles, etc.)
LED bulb (20×)
180W
Electric fan (8×)
480W
LED/Smart TV (2×)
300W
Laptop charger (2×)
130W
Smartphone charger (6×)
60W
Refrigerator – i… (2×)
500W
Water dispenser
80W
Wi-Fi router (2×)
40W
Desktop PC with …
300W
Split-type airco… (2×)
1,600W
