24V System60A MPPT
24V Hybrid Solar System

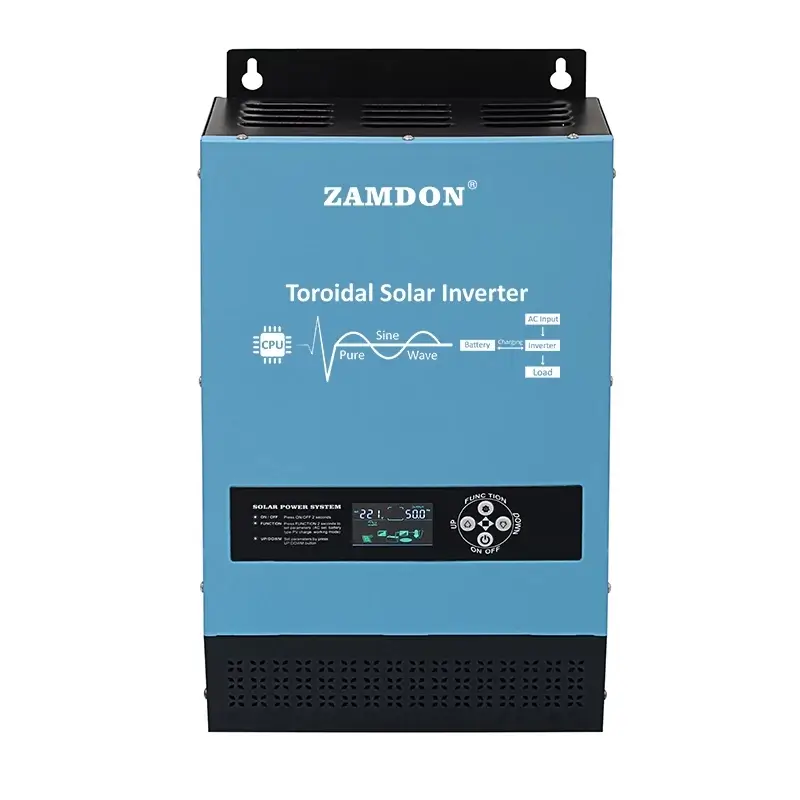

Zamdon LS-T20224-60M
A 2kW 24V unit for a small 2-bedroom Filipino home — powers lights, fans, a TV, an inverter fridge, a washing machine, and a rice cooker without wireless monitoring. The 60A MPPT handles up to 1,680W of solar panels at 150V Voc.
Power
2.0 kW
Battery
24 V
Charge
60 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the Zamdon 2.0kW series.
Solar & PV Input
- Max Array
- 1,680 W
- Max Voltage
- 150 V
- MPPT Current
- 60 A
AC Output Specs
- Rated Output
- 2,000 W
- Voltage
- 220V ±5% (Adjustable)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lead-Acid / AGM
- Nominal V
- 24 V
- Max Charge
- 60 A
Build Quality
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the Zamdon 2.0kW — sized at its rated output.
Battery breaker
125A DC
Battery cable
2 AWG
AC load breaker
16A AC
PV cable
10 AWG
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 2,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
885W
Safezone: you still have 1,115W headroom for surges (pumps, kettles, etc.)
LED bulb (10×)
90W
Electric fan (3×)
180W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
