48V System60A MPPT
48V Hybrid Solar System

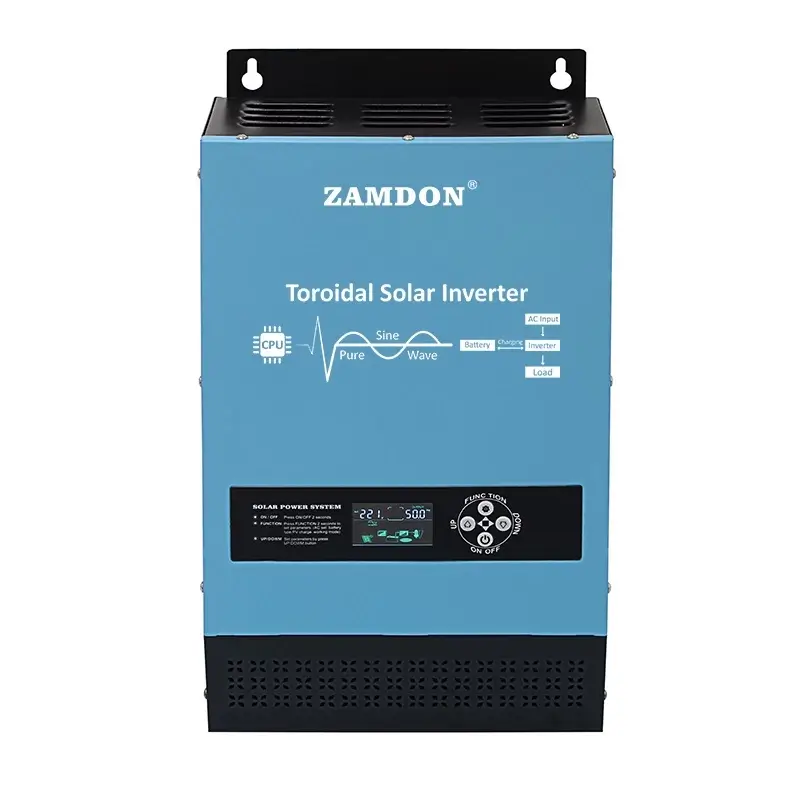

Zamdon LS-T30248-60M
A 3kW 48V unit for a 2–3 bedroom Filipino home — runs lights, fans, a TV, an inverter fridge, washing machine, water pump, and a rice cooker on an efficient 48V battery system. The 60A MPPT accepts up to 3,360W of solar panels at 150V Voc, with no wireless monitoring included.
Power
3.0 kW
Battery
48 V
Charge
60 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the Zamdon 3.0kW series.
Solar & PV Input
- Max Array
- 3,360 W
- Max Voltage
- 150 V
- MPPT Current
- 60 A
AC Output Specs
- Rated Output
- 3,000 W
- Voltage
- 220V ±5% (Adjustable)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lead-Acid / AGM
- Nominal V
- 48 V
- Max Charge
- 60 A
Build Quality
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the Zamdon 3.0kW — sized at its rated output.
Battery breaker
80A DC
Battery cable
4 AWG
AC load breaker
20A AC
PV cable
10 AWG
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 3,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
1,263W
Safezone: you still have 1,737W headroom for surges (pumps, kettles, etc.)
LED bulb (12×)
108W
Electric fan (4×)
240W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
Desktop PC with …
300W
