96V System100A MPPT
96V Hybrid Solar System

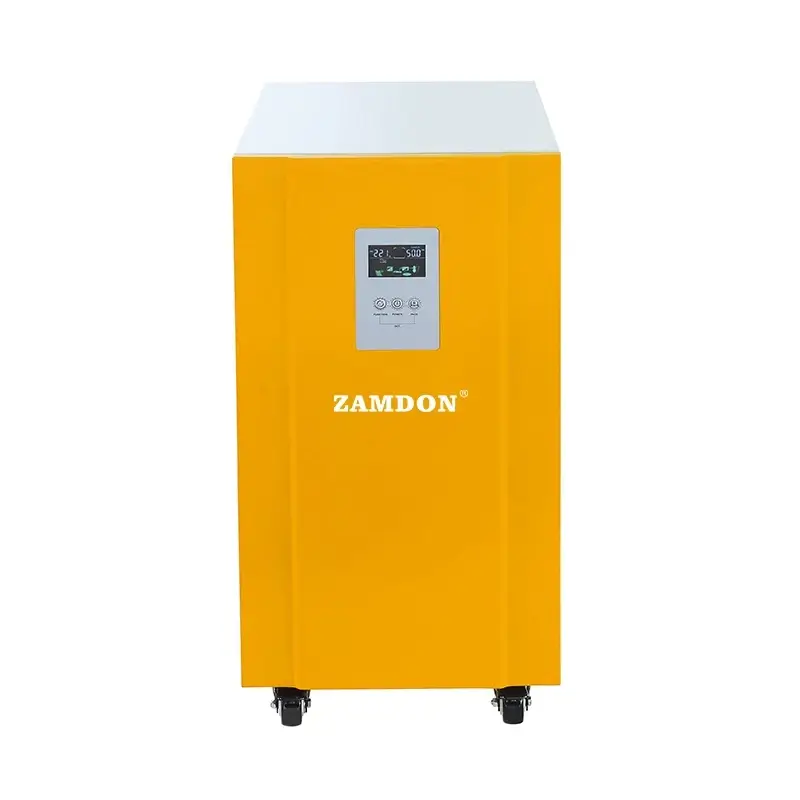

Zamdon WD-T10396-100M
A rare 96V battery system 10kW inverter for large Filipino homes or small businesses — the 96V platform significantly reduces battery-side current draw and wiring losses compared to 48V systems. Powers 4 × 1HP aircon units plus a full appliance load, with the 100A MPPT accepting up to 11,200W of solar panels at 300V Voc.
Power
10.0 kW
Battery
96 V
Charge
100 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the Zamdon 10.0kW series.
Solar & PV Input
- Max Array
- 11,200 W
- Max Voltage
- 300 V
- MPPT Current
- 100 A
AC Output Specs
- Rated Output
- 10,000 W
- Voltage
- 220V ±5% (Adjustable)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lead-Acid / AGM
- Nominal V
- 96 V
- Max Charge
- 100 A
Build Quality
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the Zamdon 10.0kW — sized at its rated output.
Battery breaker
150A DC
Battery cable
1 AWG
AC load breaker
63A AC
PV cable
10 AWG
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 10,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
3,670W
Safezone: you still have 6,330W headroom for surges (pumps, kettles, etc.)
LED bulb (20×)
180W
Electric fan (8×)
480W
LED/Smart TV (2×)
300W
Laptop charger (2×)
130W
Smartphone charger (6×)
60W
Refrigerator – i… (2×)
500W
Water dispenser
80W
Wi-Fi router (2×)
40W
Desktop PC with …
300W
Split-type airco… (2×)
1,600W
