24V System40A MPPT
24V Hybrid Solar System

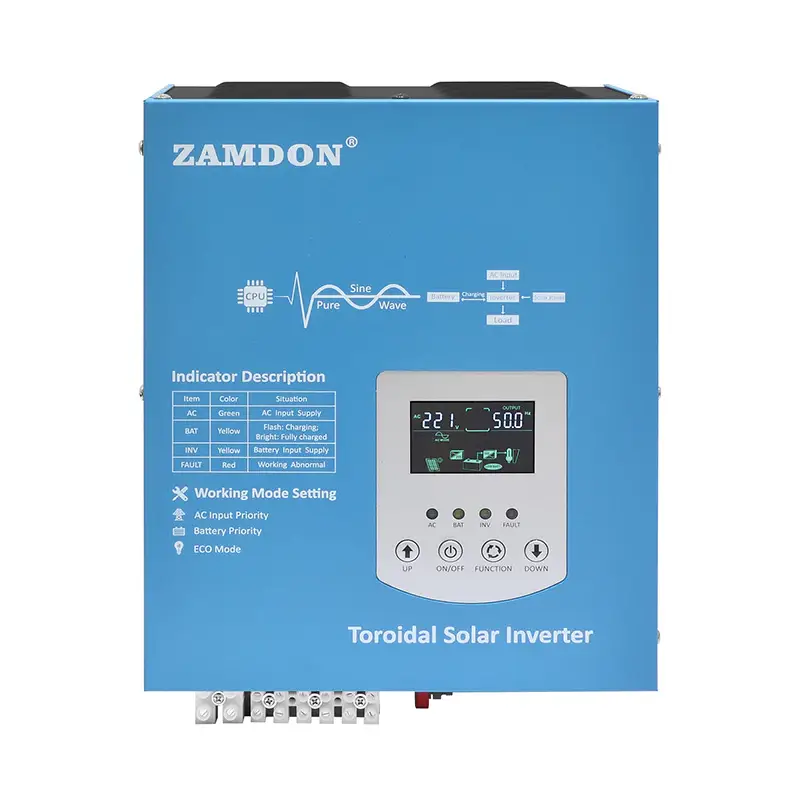

Zamdon ZD-T10224-40M
A 1kW 24V entry-level unit for a small off-grid setup or backup — runs lights, fans, a TV, an inverter fridge, and multiple devices on a 24V battery bank. The 40A MPPT accepts up to 1,120W of solar panels, delivering more PV capacity than 12V counterparts in this price range.
Power
1.0 kW
Battery
24 V
Charge
40 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the Zamdon 1.0kW series.
Solar & PV Input
- Max Array
- 1,120 W
- Max Voltage
- 120 V
- MPPT Current
- 40 A
AC Output Specs
- Rated Output
- 1,000 W
- Voltage
- 220V ±5% (Adjustable)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lead-Acid / AGM
- Nominal V
- 24 V
- Max Charge
- 40 A
Build Quality
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the Zamdon 1.0kW — sized at its rated output.
Battery breaker
63A DC
Battery cable
8 AWG
AC load breaker
10A AC
PV cable
10 AWG
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 1,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
787W
Safezone: you still have 213W headroom for surges (pumps, kettles, etc.)
LED bulb (8×)
72W
Electric fan (2×)
120W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser …
80W
