48V System100A MPPT
48V Hybrid Solar System

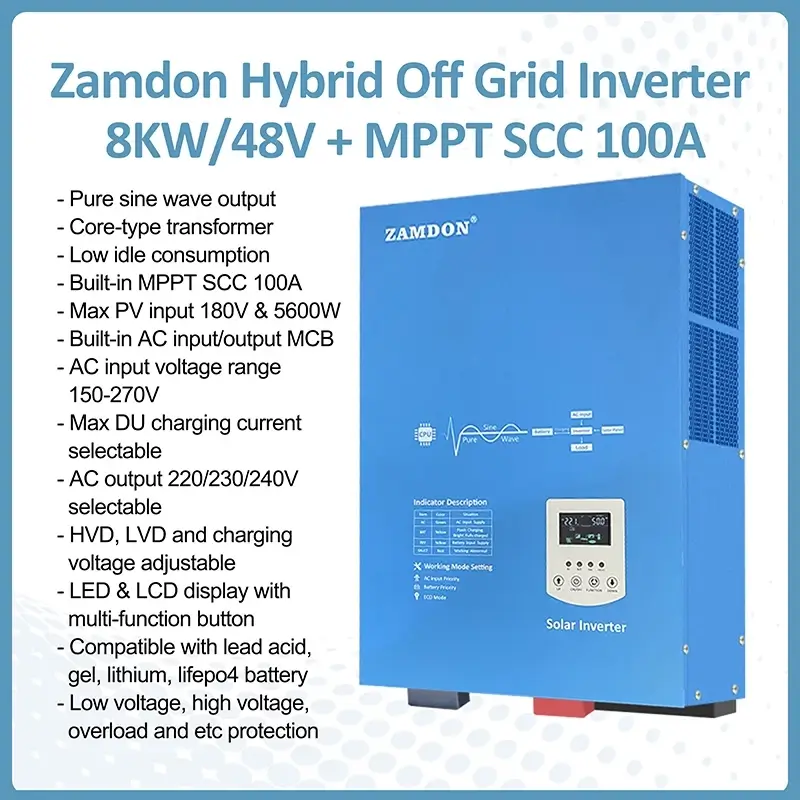

Zamdon ZD-T80248-100M
An 8kW 48V unit for a large 4-bedroom Filipino home or small business — simultaneously powers 3 × 1HP inverter aircon units, inverter fridge, washing machine, water pump, and full lighting. The 100A MPPT handles up to 5,600W of solar panels at 180V Voc.
Power
8.0 kW
Battery
48 V
Charge
100 A
Prices vary by vendor. Purchasing via these links supports SolarPanda research at no extra cost to you.
Technical Blueprint
Deep dive into the electrical capabilities of the Zamdon 8.0kW series.
Solar & PV Input
- Max Array
- 5,600 W
- Max Voltage
- 180 V
- MPPT Current
- 100 A
AC Output Specs
- Rated Output
- 8,000 W
- Voltage
- 220V ±5% (Adjustable)
- Waveform
- Pure Sine
Battery Logic
- Chemistry
- Lead-Acid / AGM
- Nominal V
- 48 V
- Max Charge
- 100 A
Build Quality
- Type
- All-in-One Hybrid
Wiring Specs
Breaker rating and wire gauge for every run on the Zamdon 8.0kW — sized at its rated output.
Battery breaker
225A DC
Battery cable
3/0 AWG
AC load breaker
50A AC
PV cable
10 AWG
What can it actually
run?
Most people buy these for brownouts or bill reduction. Here is a realistic scenario of a 8,000W unit supporting a typical Filipino household's daytime loads.
Total DemandActive Load
2,219W
Safezone: you still have 5,781W headroom for surges (pumps, kettles, etc.)
LED bulb (16×)
144W
Electric fan (6×)
360W
LED/Smart TV
150W
Laptop charger
65W
Smartphone charger (5×)
50W
Refrigerator – i…
250W
Water dispenser
80W
Wi-Fi router
20W
Desktop PC with …
300W
Split-type airco…
800W
